The MLX90823 is a packaged PCB-less, factory calibrated, relative pressure sensor IC with an analog output. It measures pressure spans from 0.1 to 1.5 bars.

Read more

Top features

  • PCB-less relative pressure sensor
  • Up to 0.5% full scale accuracy over extended mission profiles
  • Operating temperature from -40°C to 160°C
  • Robustness

    • Over (+40V) and reverse (-40V) voltage capabilities

    • Excellent module level EMC performance

    • Harsh media resistance against halogens, acids…

  • Analog output
  • Fast response time <400 µs
  • All-in-one: MEMS, interface and passive components
  • Certification

    • AEC-Q100 (automotive) and AEC-Q103-002 (pressure sensor MEMS)

    • ASIL compliant developed as an ASIL A SEooC (ISO 26262)

  • Factory calibrated or fully programmable through the connector with PTC-04 for customized calibration curves
  • Configurable diagnostic features
  • Package RoHS compliant SMP-7 (XP)

    • Easy to integrate: ridges to enable glued pressure seals

Discover all features
PCB-less relative MEMS pressure sensor IC (analog) - MLX90823

Product description

The MLX90823 is a packaged PCB-less, factory calibrated, relative pressure sensor measuring spans from 0.1 to 1.5 bars. It delivers an analog output signal.

The MLX90823 consists of a MEMS pressure sensor element, an interface chip (CMOS technology) and passive components. The optimized solution exhibits excellent EMC performance. The DSP based signal interface provides outstanding initial accuracy. A smart package and die assembly concept enable high output stability over life, even in stringent automotive temperature and stress conditions.

The MLX90823 is ASIL compliant and support safety critical applications. It has been developed as an ASIL A SEooC (Safety Element out of Context) as per ISO 26262.

An accuracy of +/-0.5 %FS (full scale) is maintained over the course of the sensor’s working lifespan. This accuracy is not impacted by the sensor integration thanks to the PCB-less packaging.

The MLX90823 is factory calibrated or fully programmable through the connector with the PTC-04 (PTC-04 DB-HALL06) for customized calibration curves. Contact your local representative for more information.

Applications examples

  • Relative pressure spans measurement from 0.1 bar to 1.5 bar
  • Fuel vapor
  • Crankcase ventilation
  • EGR (exhaust gas recirculation)
  • GPF/DPF (gasoline/diesel particulate filter)
  • SAI (secondary Air Injection)

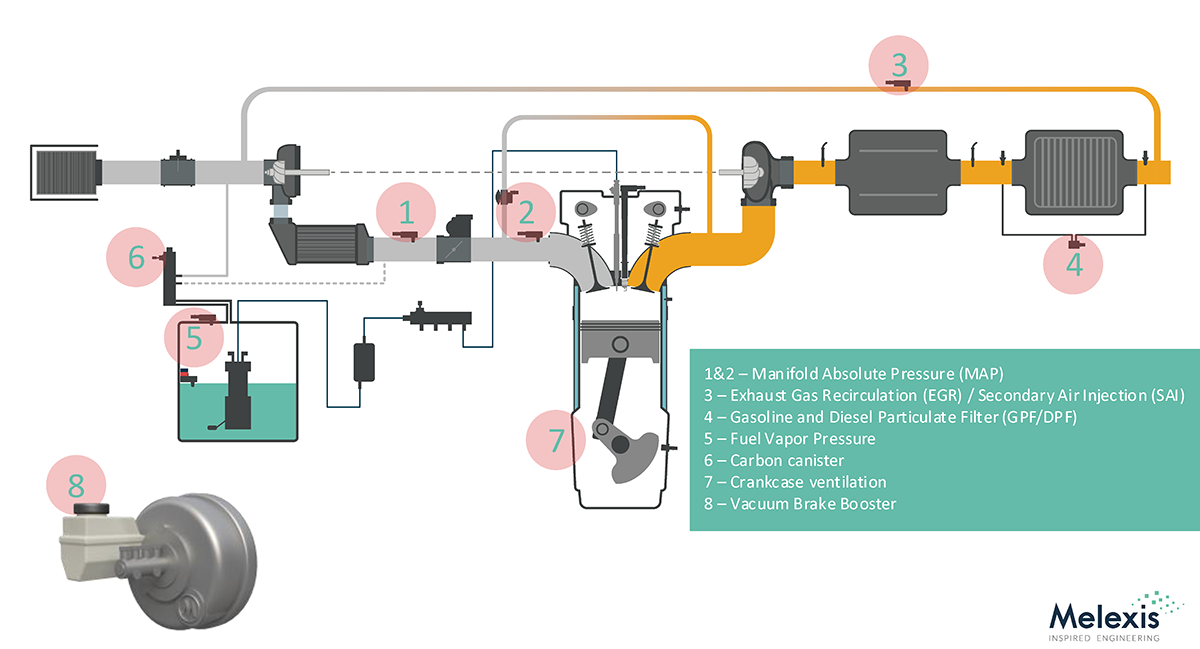

Melexis completes its PCB-less pressure sensor IC platform

Features and benefits

  • PCB-less relative pressure sensor
  • Up to 0.5% full scale accuracy over extended mission profiles
  • Operating temperature from -40°C to 160°C
  • Robustness

    • Over (+40V) and reverse (-40V) voltage capabilities

    • Excellent module level EMC performance

    • Harsh media resistance against halogens, acids…

  • Analog output
  • Fast response time <400 µs
  • All-in-one: MEMS, interface and passive components
  • Certification

    • AEC-Q100 (automotive) and AEC-Q103-002 (pressure sensor MEMS)

    • ASIL compliant developed as an ASIL A SEooC (ISO 26262)

  • Factory calibrated or fully programmable through the connector with PTC-04 for customized calibration curves
  • Configurable diagnostic features
  • Package RoHS compliant SMP-7 (XP)

    • Easy to integrate: ridges to enable glued pressure seals
