1200 V monolithic silicon RC snubber
Si-RC-Snubber

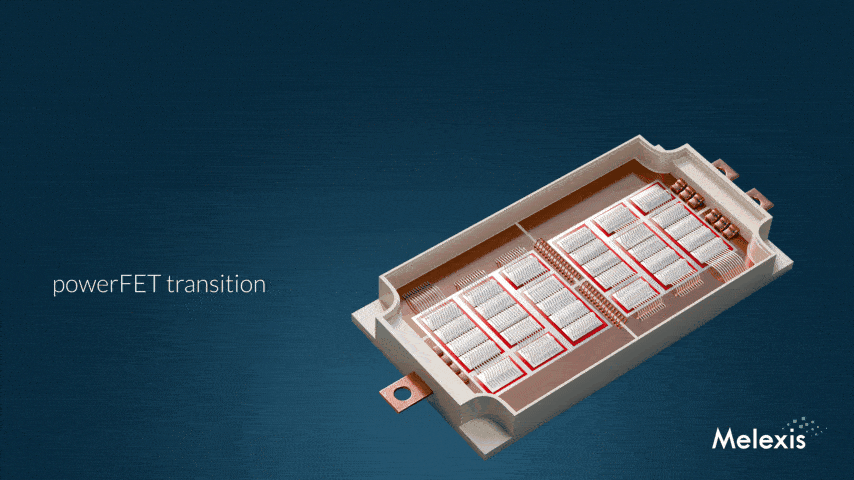

The MLX91299 is an integrated Si-RC snubber for SiC power modules. It suppresses voltage spikes and ringing to boost reliability, efficiency, and switching frequencies, with R/C values selectable for precise surge control.
Top features
- Monolithic High-Voltage Silicon RC-Snubber devices
-
Optimize system integration in power modules
-
Lowers designs area
-
Simplified mounting together with power switches or ICs
-
Backside metalization for sintering and soldering
-
Enables highly efficient dissipation of the thermal power to the heat sink
-
-
Suppress voltage surges
-
Improves reliability due to less electrical joints
-
Intended for use in DC-link applications up to 1000Vdc
-
Enables higher switching speeds and increased efficiency
-
-
Cost effective
-
Reduces component count, eliminates the need for ultra-low inductance design
-
Fully integrated
-
Facilitates EMC compliances
-
- Available as bare-die or wafer material
- Targeting operating temperature from -40 °C to 150 °C (junction @175 °C)
1200 V monolithic silicon RC snubber - Si-RC-Snubber
Product description
PRE-LAUNCH
The MLX91299 is an integrated silicon bare die with an equivalent circuit of resistor and capacitor in series. By integrating it into power semiconductor devices with a variety of topology, stray inductance would be partially decoupled from the commutation loop.
The RC works as RC snubber, assisting to reduce or eliminate unexpected ringing, suppress overshoots and optimize power losses. Therefore, it would make power electronic devices safer, reliable and efficient in operation.
Applications examples:
- Automotive
- Traction inverters
- Onboard chargers
- DCDC converters
- Industrial
- Solar converters
- Energy storage (ESS)
- Power supplies
Features and benefits
- Monolithic High-Voltage Silicon RC-Snubber devices
-
Optimize system integration in power modules
-
Lowers designs area
-
Simplified mounting together with power switches or ICs
-
Backside metalization for sintering and soldering
-
Enables highly efficient dissipation of the thermal power to the heat sink
-
-
Suppress voltage surges
-
Improves reliability due to less electrical joints
-
Intended for use in DC-link applications up to 1000Vdc
-
Enables higher switching speeds and increased efficiency
-
-
Cost effective
-
Reduces component count, eliminates the need for ultra-low inductance design
-
Fully integrated
-
Facilitates EMC compliances
-
- Available as bare-die or wafer material
- Targeting operating temperature from -40 °C to 150 °C (junction @175 °C)
Documents and tools
Product flyer(s)
Press release(s)
Related tech talks
Videos
Melexis Silicon-Based RC Snubbers: Suppressing Voltage Spikes
Discover how Melexis RC snubber technology helps improve the performance, efficiency and reliability of high-power conversion systems. In this video, Billy Ye from Melexis presents silicon-based RC snubber technology for silicon carbide power modules, explaining how it helps reduce voltage spikes, ringing and EMC issues while improving protection in traction inverters and other demanding power electronics applications.
