The EVB90365 provides an easy way to connect the MLX90365 Triaxis® magnetic sensor to a microcontroller or measurement device.

Top features

Single die, SOIC-8 package
Wide magnetic field range: 20-70mT
Pre-programmed for on-axis rotary motion sensing with a diametric magnet
10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation
Magnet not included (see magnet suppliers for magnetic position sensors)

Discover all features

Magnetic position sensor ICs

Product description

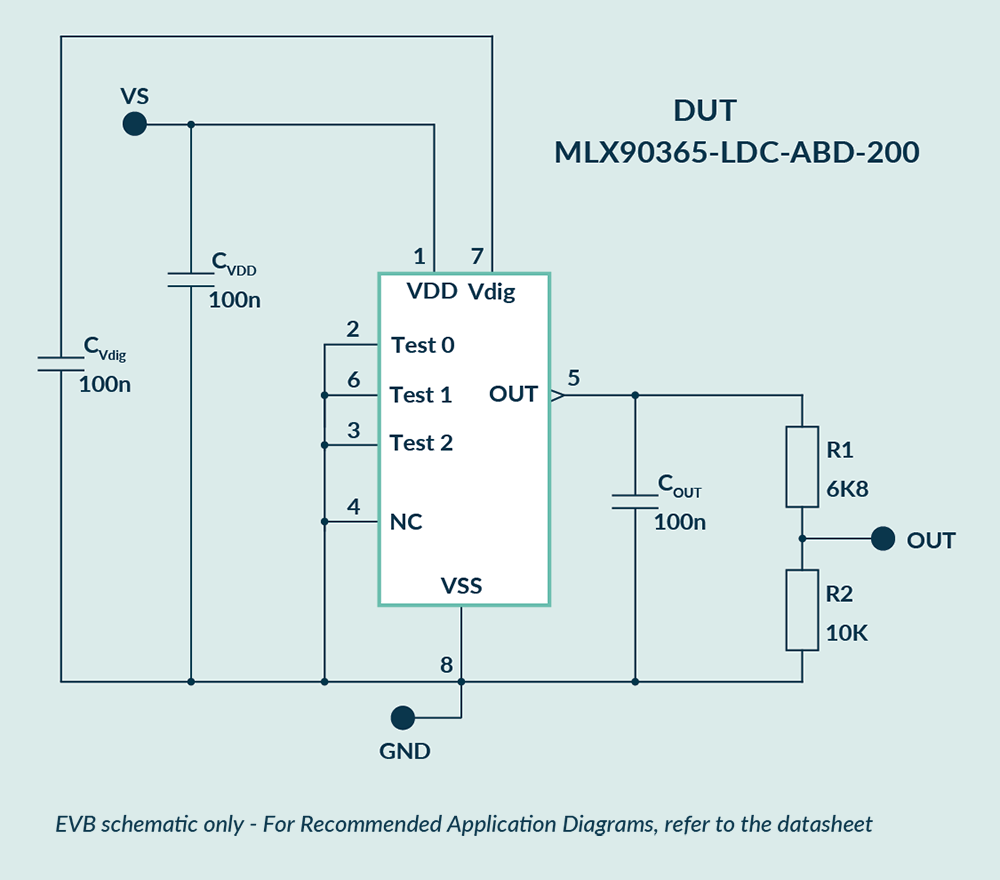

The EVB90365 contains a single MLX90365 IC mounted in the middle of a 25mm x 35mm PCB.

The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90365 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via an analog output signal.

Important: the products used on the EVB's are pre-programmed and memory locked at the factory. Therefore they cannot be reprogrammed. If it is desired to reprogram the IC's with the PTC-04 programmer then the pre-programmed part must be swapped with a blank (default) IC.

Development kit:
The development kit for magnetic sensors (or interface board) provides an easy way to connect the Melexis evaluation boards to various magnetic pieces like a knob. Additionally, the interface provides pin-outs to add an external LCD and Arduino or Mbed development board.

Order code	Product	Description
EVB90365	MLX90365 LDC-ABD-200	Pre-programmed MLX90365 in single-die SOIC-8 package. Range 0-360 degrees, 10-90% Vdd analog output. Requires 2-pole magnet.
EVB90365_h	MLX90365 LDC-ABD-200	Version with pin headers (compatible with the DVKmagnetic). Pre-programmed MLX90365 in single-die SOIC-8 package. Range 0-360 degrees, 10-90% Vdd analog output. Requires 2-pole magnet.
Magnet not included
