The EVB90365 provides an easy way to connect the MLX90365 Triaxis® magnetic sensor to a microcontroller or measurement device.

Read more

Top features

  • Single die, SOIC-8 package

  • Wide magnetic field range: 20-70mT

  • Pre-programmed for on-axis rotary motion sensing with a diametric magnet

  • 10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation

  • Magnet not included (see magnet suppliers for magnetic position sensors)
Discover all features
Evaluation board for MLX90365 - EVB90365

Product description

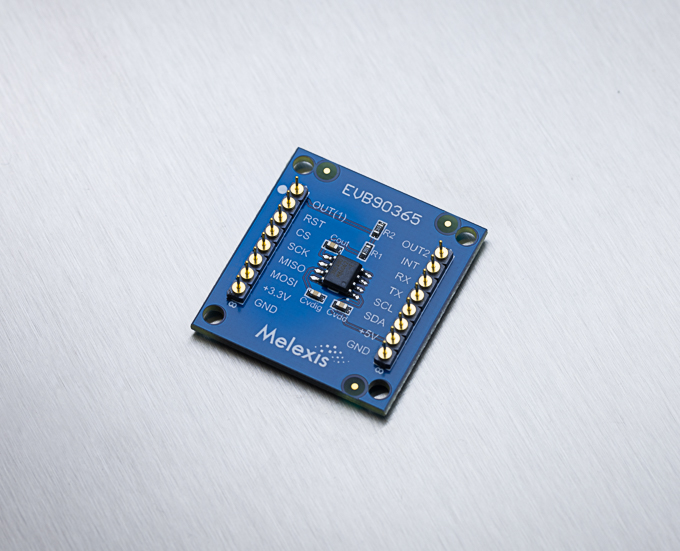

The EVB90365 contains a single MLX90365 IC mounted in the middle of a 25mm x 35mm PCB.

The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90365 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via an analog output signal.

Table of configurations:

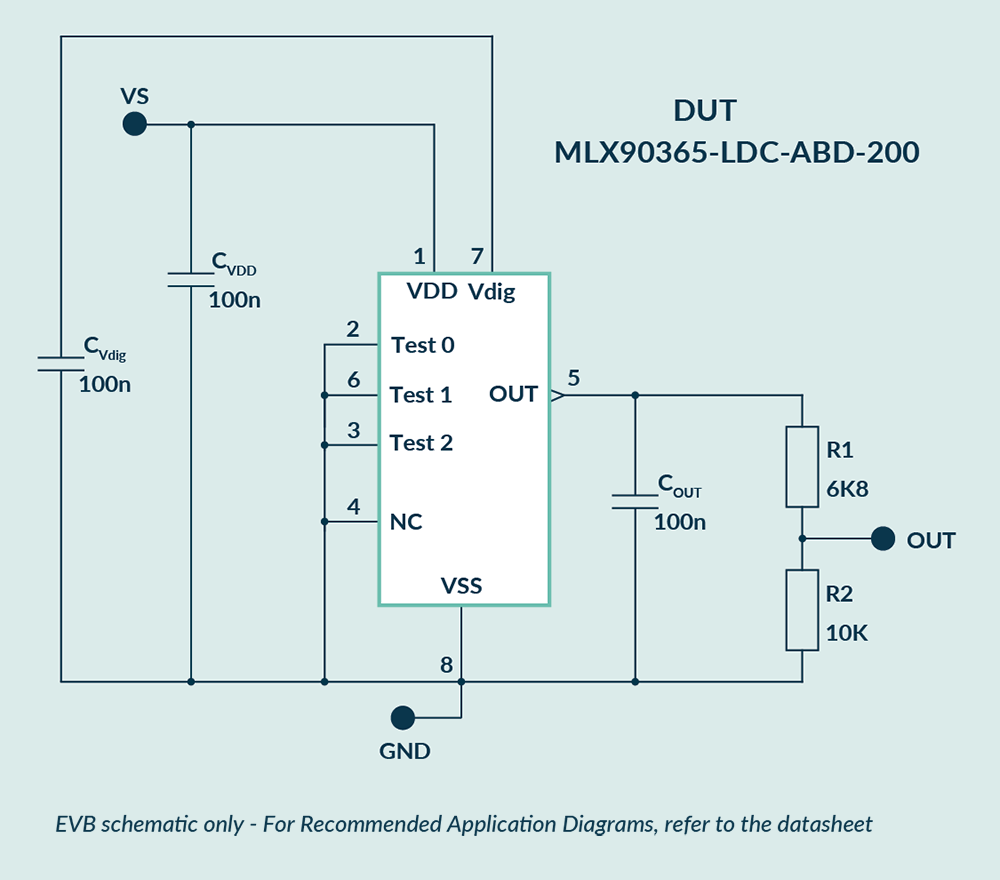

Schema for MLX90365 evaluation board

Development kit:
The development kit for magnetic sensors (or interface board) provides an easy way to connect the Melexis evaluation boards to various magnetic pieces like a knob. Additionally, the interface provides pin-outs to add an external LCD and Arduino or Mbed development board.

Features and benefits

  • Single die, SOIC-8 package

  • Wide magnetic field range: 20-70mT

  • Pre-programmed for on-axis rotary motion sensing with a diametric magnet

  • 10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation

  • Magnet not included (see magnet suppliers for magnetic position sensors)
