Development kit for magnetic sensors
DVKMagnetic Melexis
This magnetic development kit (DVK magnetic) provides an easy way to connect the Melexis evaluation boards (not included) to various magnetic pieces like a knob. Additionally, the interface provides pin-outs to add an external LCD and Arduino or Mbed development board (not included).
Top features
-
Included magnetic pieces for easy evaluation of magnetic motions (rotary, linear, joystick)
- Included pin headers to easily interface a variety of microcontroller development kits using the Arduino standard
Product description
The magnetic development kit (DVK magnetic) includes the following pieces:
- PCB with headers for connecting a Melexis EVB and an Arduino/Mbed and LCD
- 1 rotary knob with push with a 2-pole magnet
- 1 rotary knob with a 4-pole magnet
- 1 linear slider
- 1 ball and socket joystick with push
- 1 off-axis magnet holder
Any of the Melexis EVB’s designed for the interface kit can be used. The EVB’s with the required headers are indicated by a _h in the part number.
Evaluation boards:

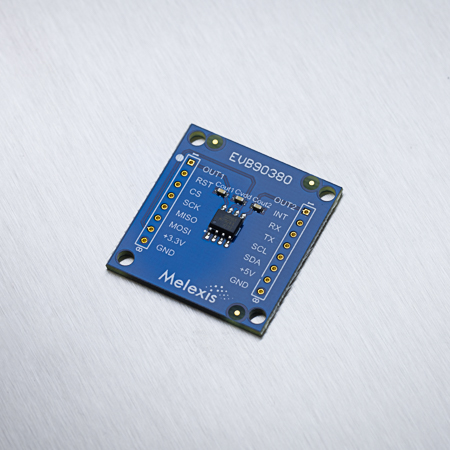

EVB90365
EVB90367
EVB90371
EVB90372
EVB90380
EVB90393
EVB90392

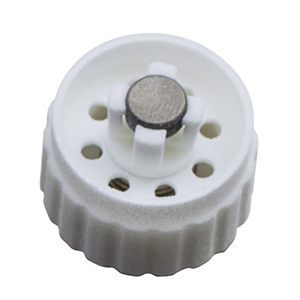

Magnet knob with push capability: |

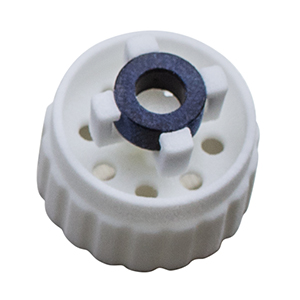

Magnet knob with four-pole magnet: |

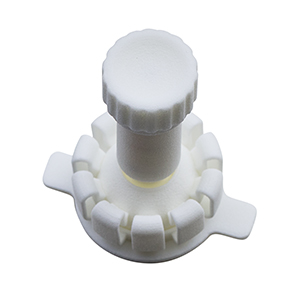

Joystick: |

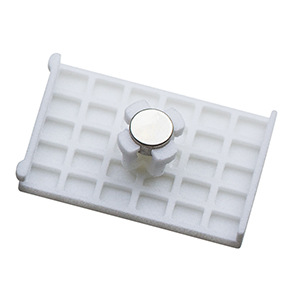

Linear slider: |

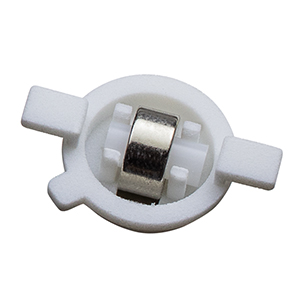

Off-axis magnet holder: |
Features and benefits
-
Included magnetic pieces for easy evaluation of magnetic motions (rotary, linear, joystick)
- Included pin headers to easily interface a variety of microcontroller development kits using the Arduino standard
Related products
Evaluation board for MLX90371
EVB90371
Evaluation board for MLX90372
EVB90372

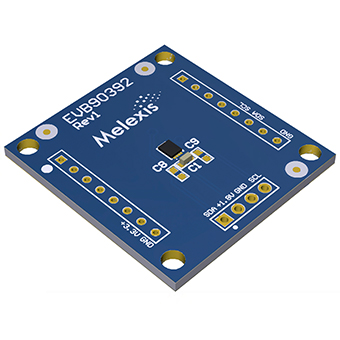

Evaluation board for MLX90392
EVB90392

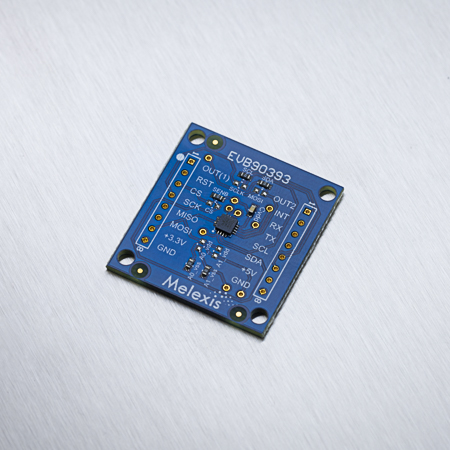

Evaluation board for MLX90393
EVB90393
Evaluation board for MLX90367
EVB90367

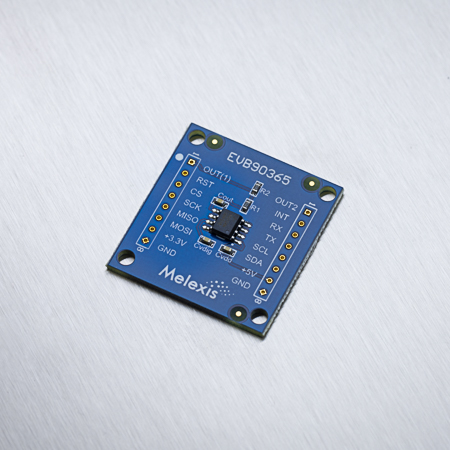

Evaluation board for MLX90365
