The MLX90392 is a 3D magnetometer especially designed for micropower cost-conscious applications and is available in versions:
+/-5mT range for low-noise applications
+/-50mT range for position sensor applications

Read more

Top features

  • Suitable for space constrained applications

    • UTDFN-8 package (JEDEC qualified) 2 x 2,5 x 0.4mm

  • Programmable parameters on the fly
  • Micropower

    • Power down current of 1.5uA

    • Supply voltage of 1.8V

  • Compatible with I2C 1MHz
  • Digital 16-bit Output for magnetic and temperature (XYZT)
  • Selectable modes

    • Single Measurement

    • Continuous Mode up to 1.4kHz (XYZ)

  • Triaxis® Hall technology for best-in-class in noise

    • 1 µTrms for the +/-5mT variant

    • 7 µTrms for the +/-50mT variant

  • Ambient temperature range from -40℃C to 85℃
Discover all features
3D Magnetometer micro-power and cost-conscious - MLX90392

Product description

The MLX90392 is a monolithic sensor IC sensitive to the flux density applied orthogonally and parallel to the IC surface. The device makes magnetic measurement along the 3 axis (X, Y being in a plane parallel to the surface of the die, Z being perpendicular to the surface). Those measurements and the IC temperature are converted into 16-bit words which are transferred upon request over I2C communication channel. The device transmits compensated raw measurement data.

Especially designed for low micropower applications, the MLX90392 features a power down current of 1.5uA, and operates on a 1.8V supply.

MLX90392 simplifies designs!
To begin with, it reduces bill-of-materials costs and saves PCB space. Measuring just 2 mm x 2.5 mm x 0.4 mm, the sensor features a UTDFN-8 ultra-thin flat no-lead 8-pin package to help designers tackle space-constrained applications. To continue, the MLX90392 internal parameter can be updated on the fly from the microcontroller I2C bus, thus eliminating the need for an extra pin. Simpler PCB can be achieved.

And finally, the MLX90392 comes pre-programmed, making it a plug & play solution to integrate.

The MLX90392 is available in 2 magnetic versions:
+/-5mT range for low-noise applications
+/-50mT range for position sensor applications

An EVB90392 is available to support the start of your design. Do not hesitate to contact your sales representative for more information.

Application Examples:

  • Power tools - Screwdriver trigger
  • Home security- door window intrusion
  • Knobs for White goods
  • PC peripheral – Mouse roller
  • Gaming joystick
  • Anti-tamper for energy metering

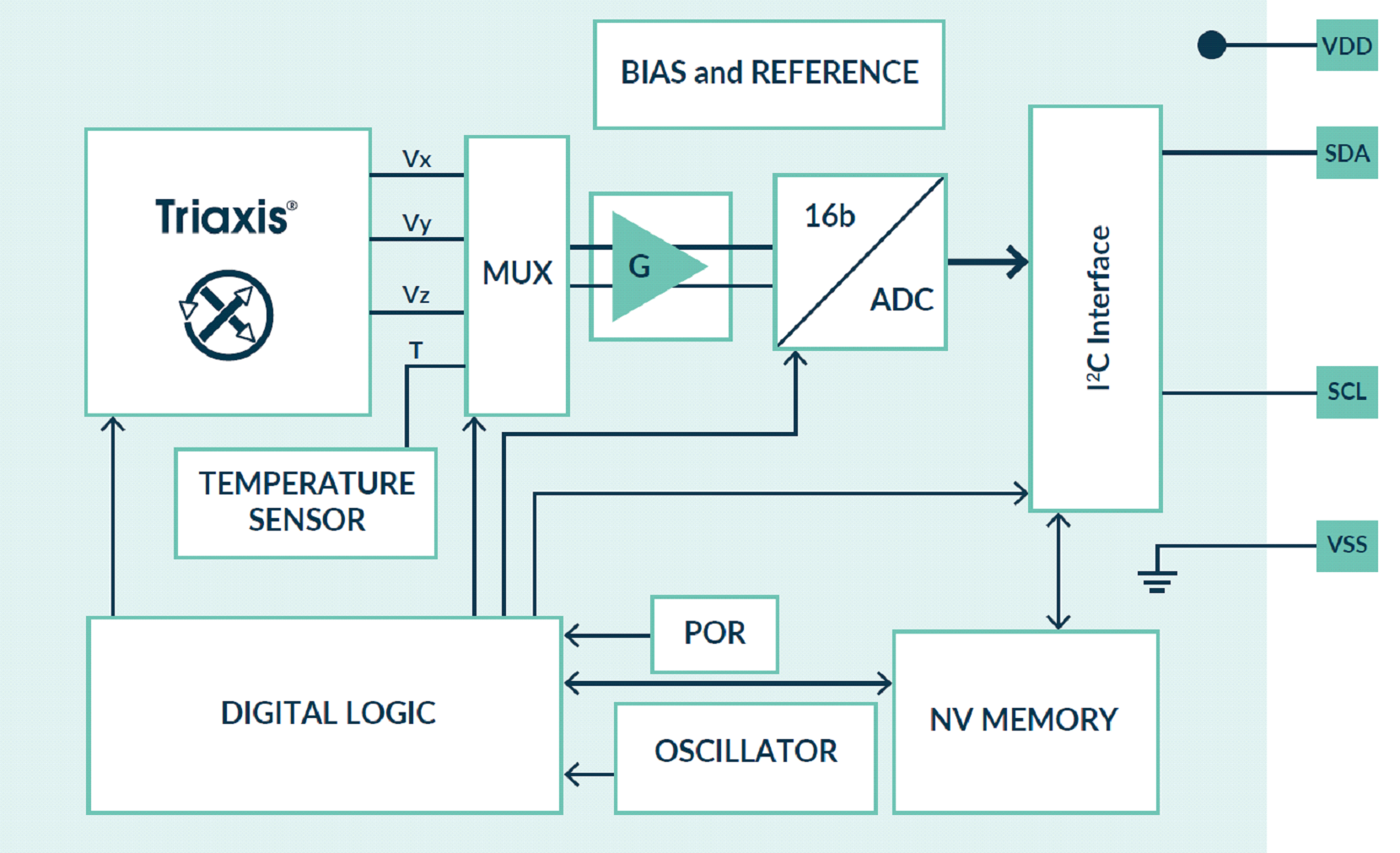

MLX90392 General Schematic

Features and benefits

  • Suitable for space constrained applications

    • UTDFN-8 package (JEDEC qualified) 2 x 2,5 x 0.4mm

  • Programmable parameters on the fly
  • Micropower

    • Power down current of 1.5uA

    • Supply voltage of 1.8V

  • Compatible with I2C 1MHz
  • Digital 16-bit Output for magnetic and temperature (XYZT)
  • Selectable modes

    • Single Measurement

    • Continuous Mode up to 1.4kHz (XYZ)

  • Triaxis® Hall technology for best-in-class in noise

    • 1 µTrms for the +/-5mT variant

    • 7 µTrms for the +/-50mT variant

  • Ambient temperature range from -40℃C to 85℃
