Triaxis® performance rotary & linear position sensor IC (Analog/PWM)

MLX90371

The MLX90371 is a monolithic sensor sensitive to the three components of the flux density applied to the IC. This allows the MLX90371 with the correct magnetic circuit to decode the absolute position of any magnet moving in its vicinity.

Read more

Top features

  • Robustness against stray-field up to 5mT

  • ISO26262 ASIL-B Safety Element out-of-Context (SEooC)

  • PCB-less dual die solution in SMP-4 package

  • Triaxis® Hall technology

  • Supported Output modes: Analog (ratiometric) or PWM (Pulse Width Modulation)

  • Programmable Linear Transfer Characteristic

    • Up to 32 programmable calibration points

  • Programmable measurement range

  • 12-bit angular resolution

  • 10-bit thermal accuracy

  • Operating temperature from -40°C to 160°C

  • On-chip signal processing for robust absolute position sensing

  • 48 bits usable for customer traceability

  • Packages, RoHS compliant

    • SOIC-8 (DC), Single Die

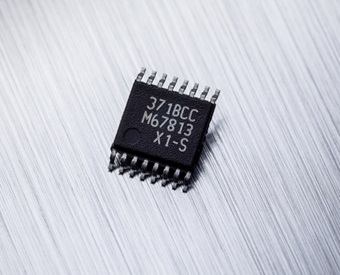

    • TSSOP-16 (GO), Dual Die (Redundancy)

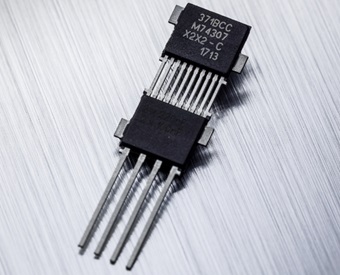

    • DMP-4 (VS), Single Die in Dual Mold PCB-less solution

    • SMP-4 (VD), Dual Die in Single Mold PCB-less solution

  • AEC-Q100 qualified (Grade-0)

  • ISO26262 ASIL-B Safety Element out-of-Context (SEooC)

  • Programmable with the PTC-04 and the PTC-04-DB-HALL06 daughterboard

Discover all features
Triaxis® performance rotary & linear position sensor IC (Analog/PWM) - MLX90371

Product description

The MLX90371 is a third generation Triaxis® position sensor IC. Thanks to an integrated magnetic concentrator (IMC) on its surface, the monolithic device senses, in a contactless fashion, the three spatial components (i.e. Bx, By and Bz) of the applied magnetic field allowing for the determination of rotary and linear movement.

Triaxis - Melexis

Learn more about the Triaxis® technology.

The MLX90371 distinguishes itself by offering, for the first time in a Triaxis® sensor IC, a stray field immune mode for rotary and linear motion sensing. This mode eliminates or drastically reduces the effects that undesired magnetic fields, from another magnet or from current carrying conductors, can have on the system. For rotary motion a range of 180 degrees is obtained with a four-pole magnet while linear motion up to 25mm or more can be obtained with a two-pole magnet.

The MLX90371 is also backwards compatible with the previous Triaxis® generations allowing for the traditional two-pole magnet with 360-degree rotational measurement capability to be used or greater than 25mm linear motion in the same device but without immunity to stray fields.

The MLX90371 is offered as an ASIL-B SEooC (Safety Element out of Context - ISO 26262) component. Contact Melexis to obtain a copy of the MLX90371 safety manual which details the relevant system integration requirements. For applications requiring redundant sensing the MLX90371 is also available in a dual die (fully redundant) TSSOP-16 package.

ASIL Ready - Melexis

The output transfer characteristic is fully programmable with up to 32 calibration points to match any specific requirement through end-of-line programming at module assembly. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals (Vdd-Vss-Out).

The MLX90371 targets and is used in a myriad of non-contacting rotary position sensor applications which are frequently seen in automotive and industrial systems. The IC is available in single and dual redundant implementations to cost-effectively address the full range of applications, including safety critical sensing requirements.

The MLX90371 is now available in Single Mold Package (SMP), a dual die PCB-less solution

Datasheet for MLX90371   Datasheet for MLX90371 SMP package

Features and benefits

  • Robustness against stray-field up to 5mT

  • ISO26262 ASIL-B Safety Element out-of-Context (SEooC)

  • PCB-less dual die solution in SMP-4 package

  • Triaxis® Hall technology

  • Supported Output modes: Analog (ratiometric) or PWM (Pulse Width Modulation)

  • Programmable Linear Transfer Characteristic

    • Up to 32 programmable calibration points

  • Programmable measurement range

  • 12-bit angular resolution

  • 10-bit thermal accuracy

  • Operating temperature from -40°C to 160°C

  • On-chip signal processing for robust absolute position sensing

  • 48 bits usable for customer traceability

  • Packages, RoHS compliant

    • SOIC-8 (DC), Single Die

    • TSSOP-16 (GO), Dual Die (Redundancy)

    • DMP-4 (VS), Single Die in Dual Mold PCB-less solution

    • SMP-4 (VD), Dual Die in Single Mold PCB-less solution

  • AEC-Q100 qualified (Grade-0)

  • ISO26262 ASIL-B Safety Element out-of-Context (SEooC)

  • Programmable with the PTC-04 and the PTC-04-DB-HALL06 daughterboard
