The MLX92361 is a revolutionary Hall based floating switch. With Its isolated output, it only requires power to directly drive a load.
MLX92361: pre-programmed
MLX92362: programmable

Read more

Top features

  • Normal or lateral magnetic sensitivity options X (Y) or Z

  • Output isolated from the supply voltage (SOI)

    • OUTA/OUTB potentials can be below GND or above VDD

  • Built-in daisy-chain functionality to synchronize multiple ICs

  • Typical RON of 3Ω

  • Output current up to 100 mA (AMR 200 mA)

  • Programmable magnetic thresholds and threshold temperature coefficient

  • Programmable magnetic Latch, Unipolar and Omnipolar Switch function

  • Operating voltage range from 4.5V to 28V

  • Operating temperature from -40°C to 150°C

  • Low average supply current – 180μA typical

  • Under-Voltage Reset protection

  • Thermal protection

  • Package RoHS compliant TSOT-6L

Discover all features

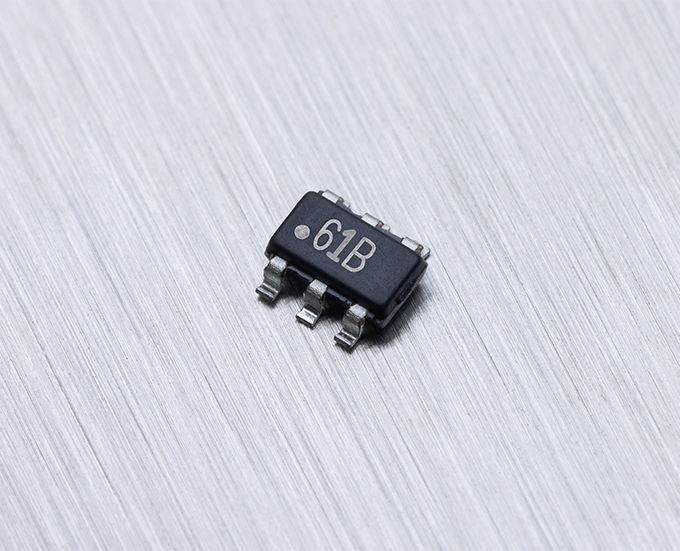

Hall based SOI floating switch - MLX92361

Product description

The MLX92361 is a revolutionary Hall switch providing better assembly yield and reliability in fluid level measurements. With Its isolated floating output, the MLX92361 only requires power to directly drive the load.

The MLX92361 is a monolithic sensor IC sensitive to normal or lateral magnetic field. It has two output pins, OUTA and OUTB, which are connected to an electrically isolated switch.

The MLX92361 can be pre-programmed to output direct or inverted signal from one of the two sensitive axes – X(Y) or Z. The signal available on the output pins is the result of a comparison between the applied magnetic field and the pre-programmed magnetic thresholds BOP and BRP for the selected sensitive axis.

The MLX92361 can be pre-programmed to act as magnetic latch or unipolar switch or omnipolar switch.

MLX92361 - MLX92362 - Melexis

Note that a series of ICs can be connected in a single module, and synchronized via the same 3-wire interface thanks to the built-in daisy-chain function.

MLX92361: pre-programmed
MLX92362: programmable

Application Examples

  • Reed switch replacement
  • Fluid level meter applications
  • Push button
  • Direct load driving
  • HIGH/LOW side switch

MLX92361 - MLX92362 - Melexis

Features and benefits

  • Normal or lateral magnetic sensitivity options X (Y) or Z

  • Output isolated from the supply voltage (SOI)

    • OUTA/OUTB potentials can be below GND or above VDD

  • Built-in daisy-chain functionality to synchronize multiple ICs

  • Typical RON of 3Ω

  • Output current up to 100 mA (AMR 200 mA)

  • Programmable magnetic thresholds and threshold temperature coefficient

  • Programmable magnetic Latch, Unipolar and Omnipolar Switch function

  • Operating voltage range from 4.5V to 28V

  • Operating temperature from -40°C to 150°C

  • Low average supply current – 180μA typical

  • Under-Voltage Reset protection

  • Thermal protection

  • Package RoHS compliant TSOT-6L
