The MLX90224 series are dual Hall-effect latch ICs. It includes two Hall-effect latch functions of which typical thresholds are ± 2.0mT.

Read more

Top features

  • 4.5 V to 26 V operation

  • Open-drain outputs

  • SIP-VA package (Through-hole)

  • Typical sensitivity ± 2 mT

  • Quadrature outputs (option A) or speed

  • Hall plate quadrature spinning current / Chopper-stabilized amplifier

Discover all features

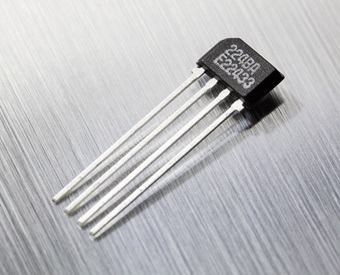

Dual Hall-effect latch IC - MLX90224

Product description

The magnetic flux detection is performed through a fast circuitry, featuring a continuous offset cancellation technique (quadrature-spinning current and chopper-stabilized amplifier).

The spacing of the plates is 1.85 mm. The BOP and BRP are temperature-compensated (+500 ppm/DegC). The output refresh rate is 15 us.

The MLX90224-A quadrature outputs are latched on in the presence of a sufficiently strong South pole magnetic flux density (BOP) facing the marked side of the package. Similarly, the output are latched off in the presence of a sufficiently strong North magnetic flux density (BRP).

Learn more about the Hall-effect principle.

Features and benefits

  • 4.5 V to 26 V operation

  • Open-drain outputs

  • SIP-VA package (Through-hole)

  • Typical sensitivity ± 2 mT

  • Quadrature outputs (option A) or speed

  • Hall plate quadrature spinning current / Chopper-stabilized amplifier
