Triaxis® mainstream rotary & linear position sensor (SENT)

MLX90422

The MLX90422 reinvents the Triaxis® Magnetic Position Sensor. It provides SENT output. It distinguishes itself with functional safety, improved EMC, AMR and an extended operating temperature range

Read more

Top features

  • SENT output (SAE J2716 APR2016)

  • ISO26262 ASIL-B SEooC (Safety Element out of Context)

  • Programmable Measurement Range

  • Programmable Linear Transfer Characteristic with up to 17 points

  • Enhanced serial data communication

  • Operating temperature from -40°C to 160°C

  • Triaxis® Hall Technology

  • On Chip Signal Processing for Robust Absolute Position Sensing

  • Packages, RoHS compliant

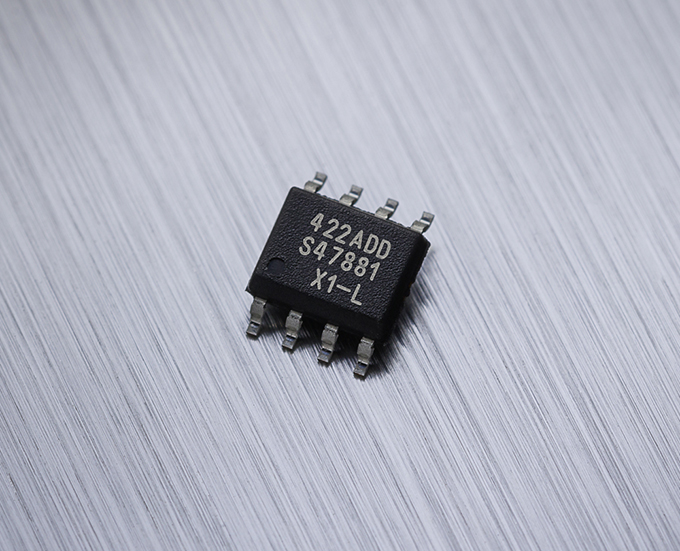

    • SOIC-8 (DC) Single Die

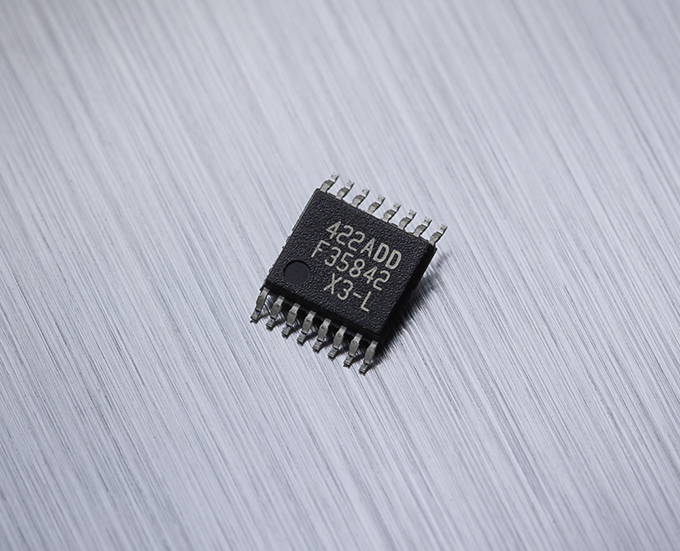

    • TSSOP-16 (GO) Dual Die (redundancy)

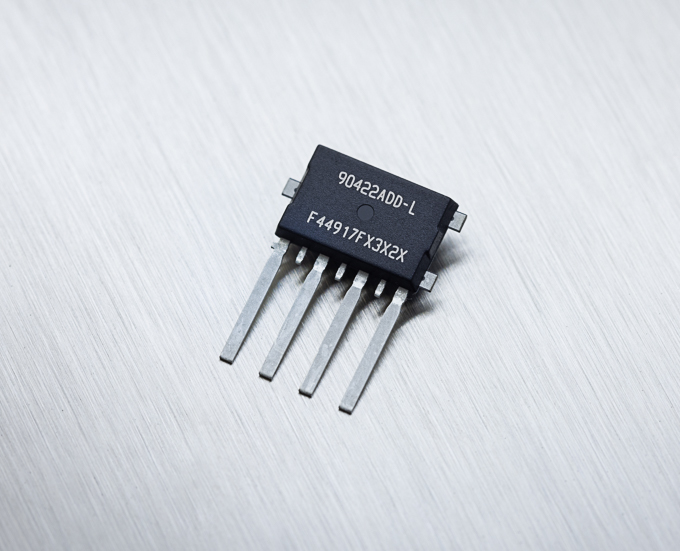

    • DMP-4 (VS), Single Die PCBless solution

    • SMP-3 (VE), Single Die PCBless solution

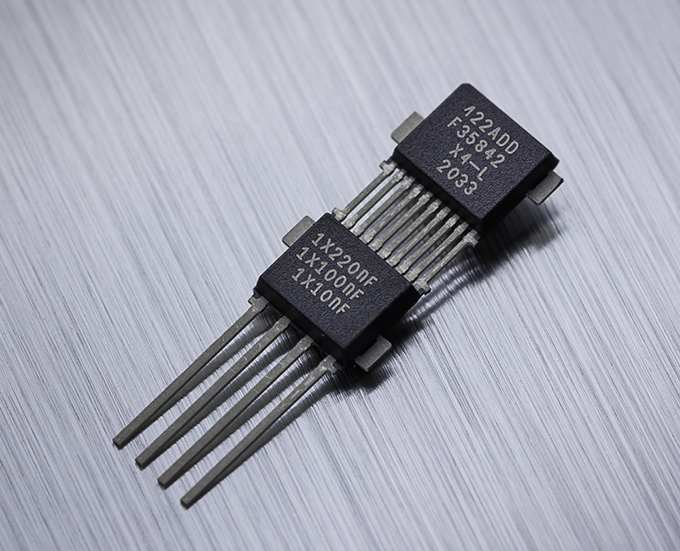

    • SMP-4 (VD), Dual Die PCBless solution

  • AEC-Q100 qualified (Grade-0)

  • ISO26262 ASIL-B SEooC (Safety Element out of Context)

  • Programmable with the PTC-04 and the PTC04-DB-HALL06 daughterboard

Discover all features
Triaxis® mainstream rotary & linear position sensor (SENT) - MLX90422

Product description

The MLX90422 reinvents the Triaxis® Magnetic Position Sensor. It provides SENT (SAE J2716 APR2016) output.

Intended for use in cost-sensitive automotive applications including powertrain actuators, pedal positioning, fuel level gauges and transmission systems, though also suitable for industrial implementations, these ICs have superior capabilities in terms of functional safety, Absolute Maximum Ratings (AMR) and electromagnetic compliance (EMC) characteristics. They also support heightened temperature operation up to 160 °C

The MLX90422 is pin-to-pin compatible with the previous generations of Triaxis® position sensor ICs

The MLX90422 is a monolithic magnetic position processor ICs. They consist of a Triaxis® Hall magnetic front end, an analog to digital signal conditioner, a DSP for advanced signal processing and an output stage driver.

The MLX90422 is sensitive to the three components of the magnetic flux density applied to the ICs (i.e. Bx, By and Bz). This allows the MLX90422 with the correct magnetic circuit to decode the absolute position of any moving magnet (e.g. rotary position from 0 to 360 Degrees, see Figure 2).

It enables the design of non-contacting position sensors that are frequently required for both automotive and industrial applications. The MLX90422 provides SENT frames encoded according to a Secure Sensor format. The circuit delivers enhanced serial messages providing error codes, and user-defined values.

The MLX90421 is compatible with the PTC04 (DB-HALL06) for mass-production programming.

Application Examples

  • Absolute Rotary Position Sensor
  • Pedal Position Sensor
  • Throttle Position Sensor
  • Ride Height Position Sensor
  • Transmission Position Sensor
  • Absolute Linear Position Sensor
  • Steering Wheel Position Sensor
  • Float-Level Sensor
  • Non-Contacting Potentiometer

MLX90421-MLX90422

Features and benefits

  • SENT output (SAE J2716 APR2016)

  • ISO26262 ASIL-B SEooC (Safety Element out of Context)

  • Programmable Measurement Range

  • Programmable Linear Transfer Characteristic with up to 17 points

  • Enhanced serial data communication

  • Operating temperature from -40°C to 160°C

  • Triaxis® Hall Technology

  • On Chip Signal Processing for Robust Absolute Position Sensing

  • Packages, RoHS compliant

    • SOIC-8 (DC) Single Die

    • TSSOP-16 (GO) Dual Die (redundancy)

    • DMP-4 (VS), Single Die PCBless solution

    • SMP-3 (VE), Single Die PCBless solution

    • SMP-4 (VD), Dual Die PCBless solution

  • AEC-Q100 qualified (Grade-0)

  • ISO26262 ASIL-B SEooC (Safety Element out of Context)

  • Programmable with the PTC-04 and the PTC04-DB-HALL06 daughterboard
