BEV thermal management

In order to optimize energy while increasing the All-Electric Range (AER), a perfect thermal management system is key. Ideal performance of the battery requires a temperature between 20-40℃, no matter the external conditions. Without the heat source of a classical ICE, new sources for heating & cooling need to be optimized. Discover the different modes.

icon current sensor vertical royal blue
Current sensors
icon current sensor golden yellow
Current sensors
icon motor driver electric green
Motor drivers
icon motor driver charcoal grey
Motor drivers
icon motor driver golden yellow
Motor drivers
icon motor driver steal grey
Motor drivers
icon motor driver royal blue
Motor drivers
icon pressure sensors coral red
Pressure sensor
icon pressure sensors electric green
Pressure sensors
icon position sensors electric green
Position sensors
Icon position sensors royal blue
Position sensors

Description

Click the icons to list the products fitting your application

Melexis IC-solutions for EV thermal management increase your time in the car. They boost the system efficiency, extend the driving range and shorten battery charging time. Additionally, they improve in-car comfort by supporting the integration of the cabin and powertrain thermal systems employing advanced heat pumps.

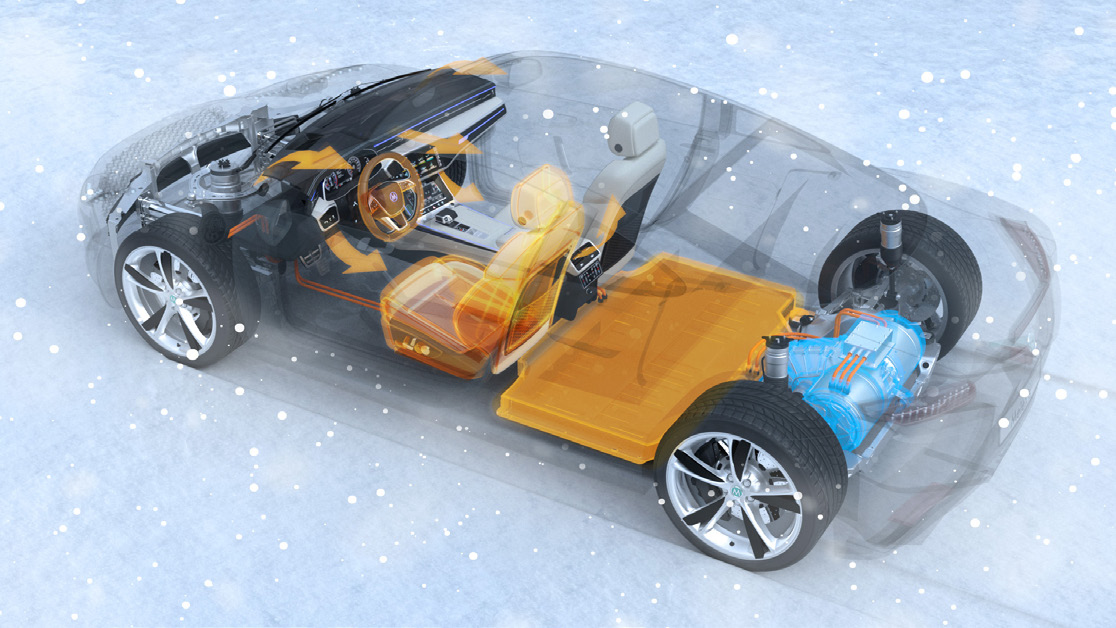

BEV thermal management - cold
BEV thermal management - cold
icon pressure sensors electric green

Pressure sensors

  • Applications

    • Protect from wet compression by monitoring the pressure & temperature of superheated gas at the outlet of evaporators

    • Monitor pressure & temperature to enable high thermodynamic performance of the refrigeration loop and a tight control of the HV e-compressor / EXV (expansion valves)

  • Relevant ICs

    • Pressure sensors MEMS (MLX90819/20)

    • Pressure sensor interface (MLX90328)

  • Key benefits

    • Accuracy over lifetime

    • Miniaturized MEMS

icon current sensor coral red

Current sensors

  • Applications

    • Monitor and control the current consumption of PTC heaters with a current measurement feedback loop

    • Safely control the motor of the e-compressor

    • Accurately monitor the current for fast charge

    • Fast charge safety mechanisms on inrush currents

  • Relevant ICs

    • IMC-Hall Shield current sensors > 50 A (MLX91208/16/18)

    • Primary integrated current sensors < 50 A (MLX91220/21)

  • Key benefits

    • High accuracy

    • Surface mount solutions for easier assembly

    • Fully integrated and isolated current sensors

    • Factory calibration

icon motor driver golden yellow

Motor drivers

  • Applications

    • Motor driver ICs bring intelligence and safety to valves

    • BLDC motors help to reduce the motor size & weight for pumps, blowers and fans

    • For silent vehicles, smart drivers ensure low acoustic motor noise of valves and pumps

  • Relevant ICs

    • LIN motor drivers (MLX81310/MLX81315/MLX81330/MLX81332)

    • LIN motor pre-drivers (MLX81325/MLX81340/MLX81344)

    • Single coil fan & pump drivers (MLX90411/MLX90412)

  • Key benefits

    • Smallest footprint

    • High operating temperature

    • Wide portfolio for best-fit choice

    • Robust operation with low acoustic noise

Icon position sensors royal blue

Position sensors

  • Applications

    • Solenoid valve with position feedback to increase safety

    • Accurate valve control

    • BLDC motor commutation

  • Relevant ICs

    • Magnetic position sensors (MLX90421/MLX90422)

    • Magnetic position sensors SPI (MLX90395/MLX90363)

    • Latches (MLX92211/MLX92212)

    • Magnetic resolver (MLX90380)

    • Inductive resolver (MLX90510)

  • Key benefits

    • Integrated sense & drive solutions

    • IC positioning flexibility

    • ISO 26262
