Smart LIN pre-driver IC for DC, stepper, BLDC motors (>1A motor current)

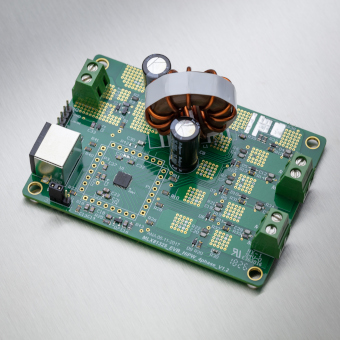

MLX81325

The MLX81325 is part of the our smart LIN motor driver IC family. The MLX81325 enables small-footprint applications to control small BLDC, stepper and DC motors with compact external NFETS to drive the motor sensored or sensorless with low noise, and a digital LIN interface for commands and feedback.

Read more

Top features

  • Single-chip motor controller to drive up to 4 half-bridges consisting of 8x NFETs (gate charge up to 30nC)

  • MLX16 + MLX4 MCU with 32KB Flash + 16KB ROM, supporting communication, diagnostics and Flash bootloader

  • Communication interface, compatible with PWM and LIN 1, LIN 2, J2602

  • Support for low-noise sensorless motor-drive and motor-stall detection

  • Extensive diagnostics options: overvoltage, undervoltage, overtemperature, overcurrent, …

  • Normal operation range of 5.5V...28V, integrated supply regulator, sleep mode

  • State of the art 0.18u high-voltage CMOS technology
Discover all features
Smart LIN pre-driver IC for DC, stepper, BLDC motors (>1A motor current) - MLX81325

Product description

The MLX81325 is part of the our smart LIN motor driver IC family. The MLX81325 enables small-footprint applications to control small BLDC, stepper and DC motors with compact external NFETS to drive the motor sensored or sensorless with low noise, and a digital LIN interface for commands and feedback.

The LIN interface is compliant with LIN 1, LIN 2, J2602, and can be configured for PWM communication.

Typical applications:

  • Small DC and BLDC pumps or valves
  • DC motor positioning for window lift, sunroofs, seats, doors with LIN
  • DC blowers or DC fans with LIN



Features and benefits

  • Single-chip motor controller to drive up to 4 half-bridges consisting of 8x NFETs (gate charge up to 30nC)

  • MLX16 + MLX4 MCU with 32KB Flash + 16KB ROM, supporting communication, diagnostics and Flash bootloader

  • Communication interface, compatible with PWM and LIN 1, LIN 2, J2602

  • Support for low-noise sensorless motor-drive and motor-stall detection

  • Extensive diagnostics options: overvoltage, undervoltage, overtemperature, overcurrent, …

  • Normal operation range of 5.5V...28V, integrated supply regulator, sleep mode

  • State of the art 0.18u high-voltage CMOS technology
