The EVB90422 provides an easy way to connect the MLX90422 Triaxis® magnetic sensor to a microcontroller or measurement device.

Read more

Top features

  • Pre-programmed for on-axis motion sensing with a diametric magnet

  • 0x0001-0x4088 SENT output over 360 degrees of rotation

  • MLX90422 Single-die SOIC-8 package

Discover all features
Evaluation board for MLX90422 - EVB90422

Product description

The EVB90422 contains a single MLX90422 IC mounted in the middle of a 25mm x 35mm PCB.

The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90422 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via a digital SENT signal.

Note: the product used on the EVB is pre-programmed and not memory locked. Therefore, if needed, it can be reprogrammed with the PTC-04 programmer .

Order code Product Description
EVB90422GDC-030-Rev1 MLX90422GDC-ABB-030 Pre-programmed MLX90422 IC in single-die SOIC-8 package for rotary end-of-shaft motion. Range 0-360 degrees, 0x0001-0x4088 SENT output. Requires 2-pole magnet.
Magnet not included

Evaluation board for MLX90422

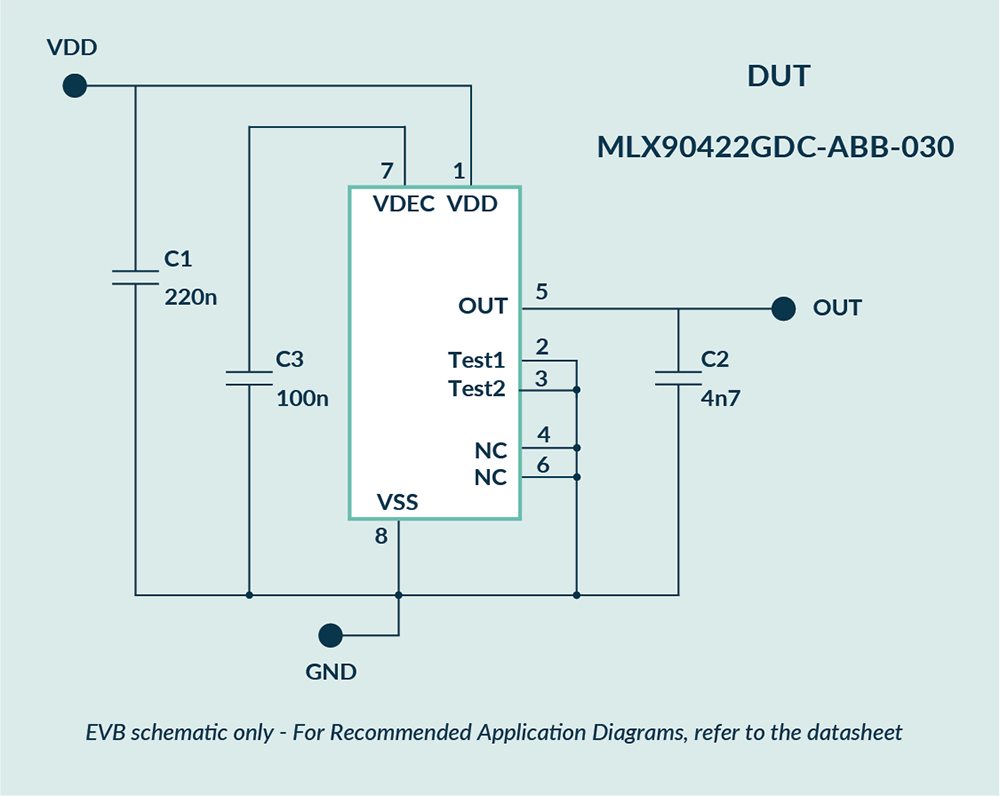

EVB schematic only - for recommended application diagrams, refer to the datasheet

Features and benefits

  • Pre-programmed for on-axis motion sensing with a diametric magnet

  • 0x0001-0x4088 SENT output over 360 degrees of rotation

  • MLX90422 Single-die SOIC-8 package
