Triaxis® mainstream rotary position sensor IC (Analog/PWM/SPI)

MLX90316

The MLX90316 is a Triaxis® rotary position sensor IC providing the angular position of a small dipole magnet rotating above the device surface (end-of-shaft magnet), targeting non-contacting rotary position sensor applications in automotive and industrial systems.

Read more

Top features

  • Absolute rotary position sensor IC

  • Simple and robust magnetic design

  • Triaxis® Hall technology

  • Programmable angular range up to 360 degrees

  • Selectable output mode: analog (ratiometric), PWM or serial protocol (SPI)

  • 12-bit angular resolution over 360 degrees

  • 10-bit angular thermal accuracy

  • 40-bit ID number

  • -40°C to 150°C ambient temperature range

  • Broken-track diagnostic (open-Vdd, open-Vss)

  • On-chip diagnostics

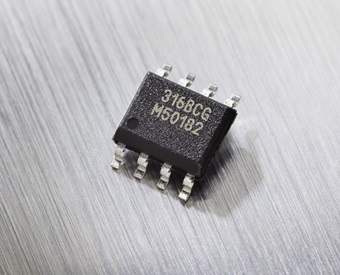

  • Single die SOIC-8 package RoHS compliant

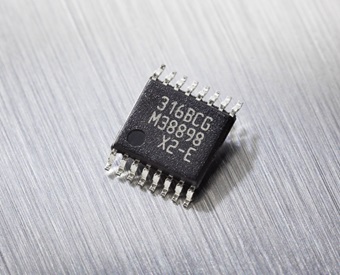

  • Dual die (full redundant) TSSOP-16 package RoHS compliant
Discover all features
Triaxis® mainstream rotary position sensor IC (Analog/PWM/SPI) - MLX90316

Product description

The MLX90316 is a Triaxis® rotary position sensor IC providing the angular position of a small dipole magnet rotating above the device surface (end-of-shaft magnet). Thanks to an IMC on its surface, the monolithic device senses, in a contactless fashion, the horizontal component of the applied magnetic flux density.

This unique sensing principle applied to a rotary position sensor results into an impressive robustness of the angular position over the mechanical (air-gap, off-axis) tolerances. The rotation of this horizontal component is sensed over a wide range (up to 360º) and processed by the on-chip DSP to ultimately report the absolute angular position of the magnet either as a ratiometric analog output or as Pulse-Width Modulation (PWM) signal or as a 14-bit data accessible through a 3-pin SPI (serial interface) channel.

The output transfer characteristic is fully programmable (e.g. offset, gain, clamping levels, linearity, thermal drift, filtering, range, ...) to match any specific requirement through end-of-line calibration. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals (Vdd-Vss-Out).

The MLX90316 targets a myriad of non-contacting rotary position sensor applications which are frequently seen in automotive and industrial systems. This device is available in single and dual redundant implementations to cost-effectively address the full range of applications, including safety critical sensing requirements.

Learn more about the Triaxis® technology.

Features and benefits

  • Absolute rotary position sensor IC

  • Simple and robust magnetic design

  • Triaxis® Hall technology

  • Programmable angular range up to 360 degrees

  • Selectable output mode: analog (ratiometric), PWM or serial protocol (SPI)

  • 12-bit angular resolution over 360 degrees

  • 10-bit angular thermal accuracy

  • 40-bit ID number

  • -40°C to 150°C ambient temperature range

  • Broken-track diagnostic (open-Vdd, open-Vss)

  • On-chip diagnostics

  • Single die SOIC-8 package RoHS compliant

  • Dual die (full redundant) TSSOP-16 package RoHS compliant
