Triaxis® 旋转和线性位置传感器 IC(SENT 或 PWM 输出)

MLX90372 Melexis

MLX90372 是一款单片磁性位置处理器 IC,由 Triaxis® 霍尔磁性前端、模数信号调节器、应用于高级信号处理的 DSP 和输出级驱动器组成。

了解详情

主要优势

  • 有效抑制高达 5mT 的杂散场

  • ISO26262 ASIL-C 独立安全单元 (SEooC)

  • 工作温度为 -40°C 至 160°C

  • Triaxis® 霍尔技术

  • 可选输出模式:可选(快速)SENT 或 PWM 输出(脉宽调制)

  • SAE J2716 APR2016 SENT

  • 可编程线性传输特性

    • 多达 32 个可编程校准点

  • 可编程测量范围

  • 强化串行数据通信

  • 工作电源电压范围为 4.5 V 至 18 V

  • 工作温度为 -40°C 至 160°C

  • 片上信号处理,可实现可靠的绝对位置感应

  • 48 位 可用于客户追踪

  • 符合 RoHS 标准的封装

    • SOIC-8 (DC),单芯片

    • TSSOP-16 (GO),双芯片(冗余)

    • DMP-4 (VS),单芯片,无 PCB 双模封装

  • AEC-Q100 0 级认证

  • ISO26262 ASIL-C 独立安全单元 (SEooC)

  • 可通过 PTC-04 和 PTC-04-DB-HALL06 子板编程

查看详细介绍
Triaxis® 旋转和线性位置传感器 IC(SENT 或 PWM 输出)  -  MLX90372

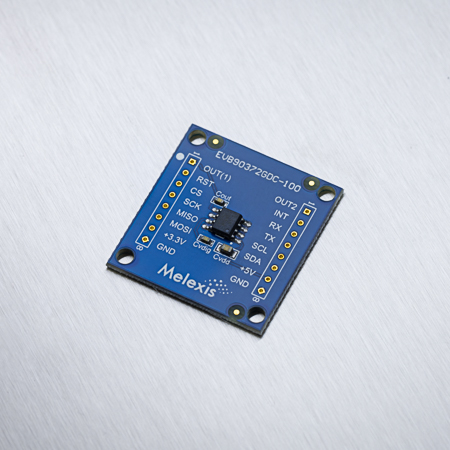

产品介绍

MLX90372 是第三代 Triaxis® 位置传感器 IC。这款单片器件可凭借其表面的集磁点 (IMC),以一种非接触方式感测所施加场的 3 个空间分量(即 Bx、By 和 Bz),支持旋转和线性移动的测定。

Triaxis - Melexis

了解更多关于 Triaxis® 技术的信息。

MLX90372 的突出优势是首次在 Triaxis® 传感器 IC 中提供针对旋转和线性运动传感的杂散场抗扰模式。该模式可消除或大幅降低其他磁体或载流导体产生的无用磁场对系统造成的影响。借助四极磁体可获得 180 度范围的旋转运动;借助两极磁体可实现 25mm 或更大范围的线性运动。

此外,MLX90372 还向后兼容前几代 Triaxis® 产品,从而可在同一器件中使用具备 360 度旋转测量能力的传统双极磁体或实现超过 25mm 的线性运动,但此时不再具备杂散场抗扰能力。

MLX90372 作为 ASIL-C SEooC(独立安全单元 - ISO 26262)组件提供。如需了解相关系统集成要求的详细信息,可联系 Melexis 获取一份 MLX90372 安全手册。对于需要冗余传感的应用,MLX90372 还提供了双芯片(全冗余)TSSOP-16 封装。

ASIL Ready - Melexis

输出传输特性可完全编程,最多有 32 个校准点,能够满足模块装配下线编程过程中的任何特定要求。Melexis 编程单元 PTC-04 专门通过连接器端子 (Vdd-Vss-Out) 与器件通信并对器件进行校准。

此外,MLX90372 还能够读取外部输入,其中可能包括来自温度传感器、压力传感器或其他位置传感器的信号。测得的值随后将进行线性化(可选)并予以加密,以便能够与角测量值一同经 SENT 总线发送,从而减少接线并提高传感器 IC 的集成度。

MLX90372 适用于汽车和工业系统中常见的大量非接触式旋转位置传感器应用。该 IC 可采用单一和双重冗余实施方案,能够以经济高效的方式满足各种应用的要求(包括安全关键型传感要求)。

特性和优势

  • 有效抑制高达 5mT 的杂散场

  • ISO26262 ASIL-C 独立安全单元 (SEooC)

  • 工作温度为 -40°C 至 160°C

  • Triaxis® 霍尔技术

  • 可选输出模式:可选(快速)SENT 或 PWM 输出(脉宽调制)

  • SAE J2716 APR2016 SENT

  • 可编程线性传输特性

    • 多达 32 个可编程校准点

  • 可编程测量范围

  • 强化串行数据通信

  • 工作电源电压范围为 4.5 V 至 18 V

  • 工作温度为 -40°C 至 160°C

  • 片上信号处理,可实现可靠的绝对位置感应

  • 48 位 可用于客户追踪

  • 符合 RoHS 标准的封装

    • SOIC-8 (DC),单芯片

    • TSSOP-16 (GO),双芯片(冗余)

    • DMP-4 (VS),单芯片,无 PCB 双模封装

  • AEC-Q100 0 级认证

  • ISO26262 ASIL-C 独立安全单元 (SEooC)

  • 可通过 PTC-04 和 PTC-04-DB-HALL06 子板编程
