The EVB90367 provides an easy way to connect the MLX90367 Triaxis® magnetic sensor to a microcontroller or measurement device.

Read more

Top features

  • Single die, SOIC-8 package

  • Wide magnetic field range: 20-70mT

  • Pre-programmed for on-axis rotary motion sensing with a diametric magnet

  • 0x00100 to 0xFF80 SENT output over 360 degrees of rotation

  • Magnet not included (see magnet suppliers for magnetic position sensors)
Discover all features

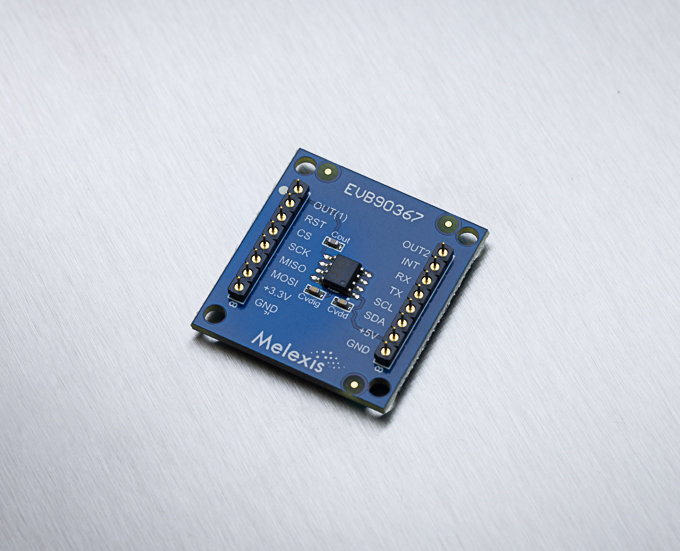

Evaluation board for MLX90367 - EVB90367

Product description

The EVB90367 contains a single MLX90367 IC mounted in the middle of a 25mm x 35mm PCB.

The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90367 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via the SENT protocol.

Table of configuration:
EVB90367 Table of configuration

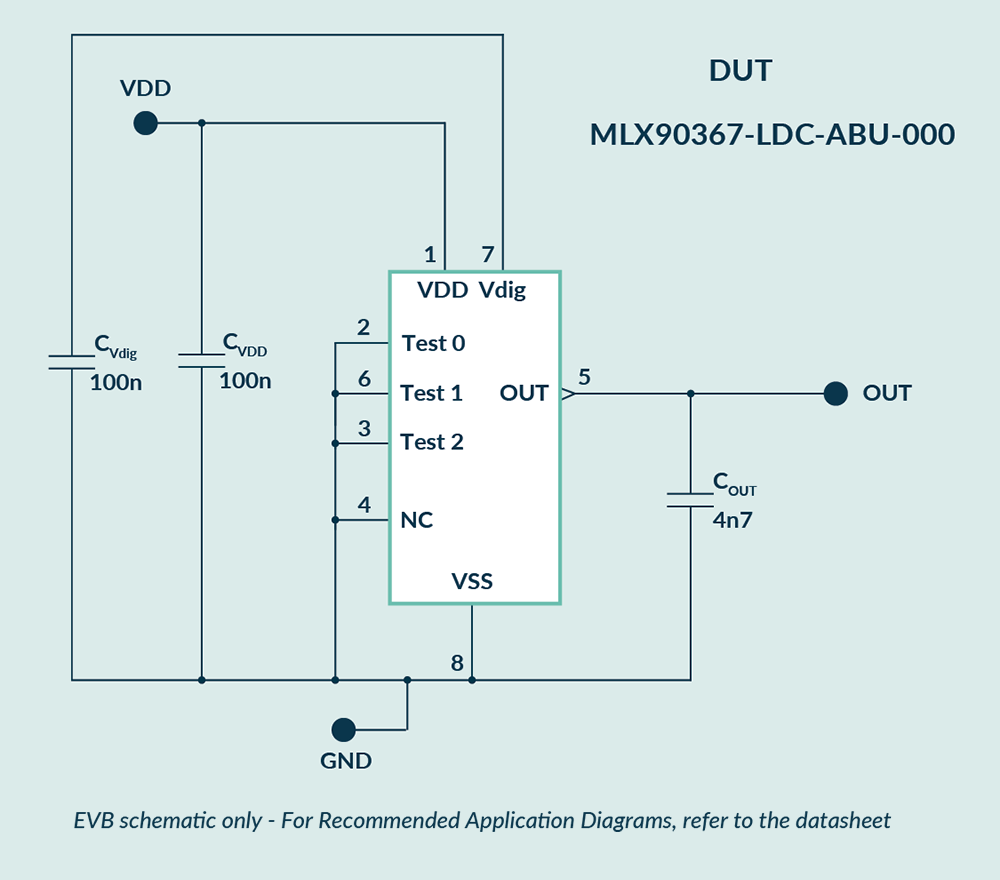

Schema for MLX90367 evaluation board

Development kit:
The development kit for magnetic sensors (or interface board) provides an easy way to connect the Melexis evaluation boards to various magnetic pieces like a knob. Additionally, the interface provides pin-outs to add an external LCD and Arduino or Mbed development board.

Features and benefits

  • Single die, SOIC-8 package

  • Wide magnetic field range: 20-70mT

  • Pre-programmed for on-axis rotary motion sensing with a diametric magnet

  • 0x00100 to 0xFF80 SENT output over 360 degrees of rotation

  • Magnet not included (see magnet suppliers for magnetic position sensors)
