Melexis Compact Master for MLX80339
MCM81339

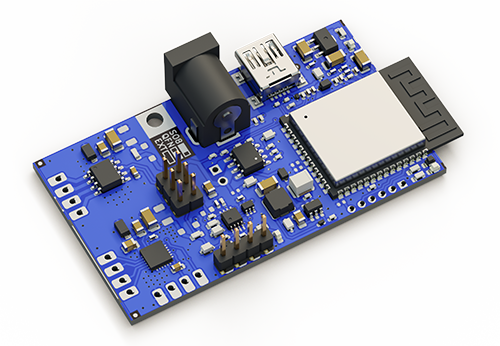

The MCM81339 is a pcb enabling fast characterizing and tuning of low-power fan applications (<40 W) without writing a single line of code. It is made to support the MLX80339 development.
Top features
-
MLX80339 Code-free
-
Configure complex motor control logic through a user-friendly GUI without writing code
-
-
Start-To-Run tool
-
Automated Parameter Measurement
-
Quickly identify motor inertia, friction coefficients, and maximum speeds via a cloud-based tool
-
-
Universal Communication Support
-
Test and tune your application using PWM, I2C, or UART (1-wire/2-wire) interfaces
-
-
12V and 24V Compatibility
-
Supports a wide range of low-power BLDC motors and fans
-
-
Integrated Diagnostics
-
Easily set thresholds for overvoltage, undervoltage, and overtemperature protection
-
Melexis Compact Master for MLX80339 - MCM81339
Product description
The MCM81339 is a pcb enabling fast characterizing and tuning of low-power fan applications (<40 W) without writing a single line of code.
The pcb leverages the Melexis Start-to-Run cloud environment to automatically measure a motor's main electrical and mechanical parameters.
The MCM81339 is valid for the MLX80339 (code-free). Since the code-free MLX80339-210 chip implements motor control entirely in logic, the environment allows users to generate a complete set of configuration parameters (Hex format) required for reliable motor operation.
Key Use Cases:
- Characterization: Automatic measurement of phase resistance, inductance, and BEMF constants.
- Iterative Tuning: Verify and adjust performance parameters like speed curves, start currents, and acceleration & deceleration limits in real-time.
- Production Readiness: Export finalized configuration ready for production environment programming.
Inside the Box

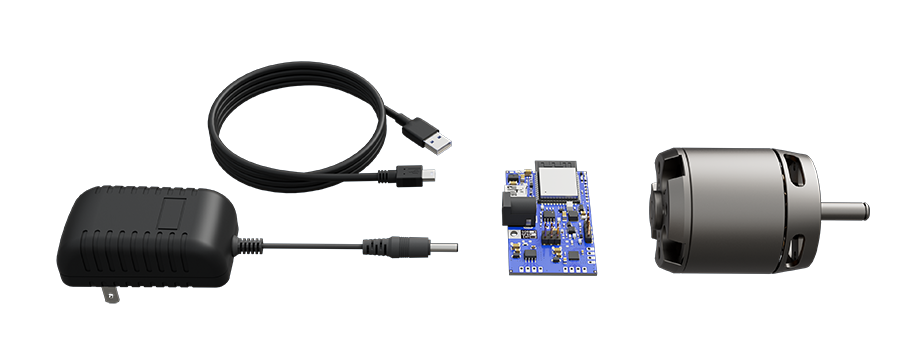

- MCM81339 Board
What You’ll Need (Not Included)
- Motor: Your specific reference fan or motor to connect to the motor output of the MCM board
- Power: 12V to 24V DC power supply (round DC plug)
- Cables: USB-C (for communication) from the MCM board to your PC
Features and benefits
-
MLX80339 Code-free
-
Configure complex motor control logic through a user-friendly GUI without writing code
-
-
Start-To-Run tool
-
Automated Parameter Measurement
-
Quickly identify motor inertia, friction coefficients, and maximum speeds via a cloud-based tool
-
-
Universal Communication Support
-
Test and tune your application using PWM, I2C, or UART (1-wire/2-wire) interfaces
-
-
12V and 24V Compatibility
-
Supports a wide range of low-power BLDC motors and fans
-
-
Integrated Diagnostics
-
Easily set thresholds for overvoltage, undervoltage, and overtemperature protection
-
Videos
MLX80339: Code-free characterizing and tuning of low-power fan applications

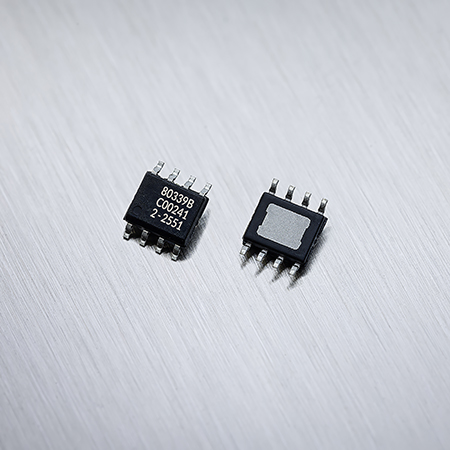

Melexis announces the MLX80339, a code-free three-phase fan driver integrated circuit designed to bring efficient, low-noise motor control to the global market. Featuring pre-validated logic configurable via an intuitive interface, the code-free MLX80339 enables rapid deployment of BLDC motor control without the overhead of software development.
