The MLX75026 is a fully integrated optical time-of-flight image sensor IC, featuring a QVGA (320x240) pixel array based on the DepthSense® pixel technology.

Read more

Top features

  • Supports both 850 and 940 nm wavelength

  • QVGA (320 x 240 pixels) resolution

  • High distance accuracy due to programmable modulating frequencies up to 100 MHz

  • Full resolution readout up to 135 fps (distance frames in 4 phase configuration)

  • 1/4” optical format

  • 0.7 ms phase readout time

  • Up to 8 raw phases per frame, per-phase statistics & diagnostics

  • Region of interest (ROI) selection, integrated support for binning (2x2, 4x4, 8x8), horizontal mirror & vertical flip image modes

    • Continuous or triggered operation mode(s)

    • Configurable over I2C (up to 400 kHz)

    • CSI-2 serial data output, MIPI D-PHY, 1 clock lane

  • 2 data lanes

  • Built-in temperature sensor

  • Package: 9.2 x 7.8 x 1.0 mm encapsulated (80 pins)

  • Ambient operating temperature range -40 +105 °C (ambient temperature)

  • AEC-Q100 qualified (grade 2)

Discover all features
Gen 3 Single-chip QVGA time-of-flight - MLX75026

Product description

The MLX75026 QVGA is the second member of the third generation of fully integrated optical time-of-flight (ToF) sensor ICs. It is compatible with the MLX75027 VGA resolution ToF sensor IC. Target applications include automotive driver monitoring (DMS), in-cabin monitoring (ICM), exterior cocooning as well as robotics, autonomous transport (AGVs), people and 3D object detection in industry, retail, logistics and smart cities. In automotive interior sensing use cases, while one VGA resolution sensor covers the full interior of a car, the MLX75026 QVGA ToF sensor IC offers a similar resolution for single-seat areas e.g. for driver monitoring, body position, occupancy classification, etc.

The sensor features a QVGA (320x240) pixel array and comes in a small package size and small ¼” optical format. Its full compatibility with the VGA ToF sensor highly facilitates the reuse of existing software, which eases migration paths between cost-effective QVGA and more high-end VGA solutions.

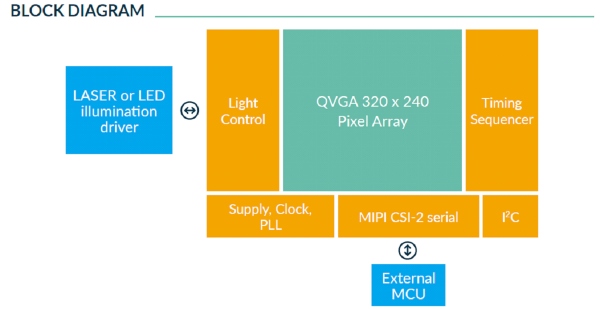

MLX75026 Block diagram

An EVK75026 evaluation kit is available to get started with the MLX75026 QVGA ToF sensor IC.

Features and benefits

  • Supports both 850 and 940 nm wavelength

  • QVGA (320 x 240 pixels) resolution

  • High distance accuracy due to programmable modulating frequencies up to 100 MHz

  • Full resolution readout up to 135 fps (distance frames in 4 phase configuration)

  • 1/4” optical format

  • 0.7 ms phase readout time

  • Up to 8 raw phases per frame, per-phase statistics & diagnostics

  • Region of interest (ROI) selection, integrated support for binning (2x2, 4x4, 8x8), horizontal mirror & vertical flip image modes

    • Continuous or triggered operation mode(s)

    • Configurable over I2C (up to 400 kHz)

    • CSI-2 serial data output, MIPI D-PHY, 1 clock lane

  • 2 data lanes

  • Built-in temperature sensor

  • Package: 9.2 x 7.8 x 1.0 mm encapsulated (80 pins)

  • Ambient operating temperature range -40 +105 °C (ambient temperature)

  • AEC-Q100 qualified (grade 2)
