The MLX90342 is an innovative, high-performance quadruple thermocouple interface that provides rapid response and very high levels of accuracy when measuring extreme temperatures. It has been specifically designed to allow automotive designers to address the need for more stringent engine and exhaust thermal management and control.

Read more

Top features

  • RoHS compliant QFN 4x6 26 pins package for even smaller PCB area

  • -40°C to 1,300°C measurement temperature range

  • Operating temperature specification spanning -40 to 155°C

  • Can attains the high accuracy of ±2.5°C for Ta>0degC

  • High update rate up to 100Hz

  • Thermocouple linearization with on board cold junction compensation

  • SENT standard according to SAE-J2716 Jan 2010 plus Fast Channel Multiplexing

  • Extensive sensor diagnostic capabilities

  • Enables the exhaust treatment system to conform to the latest environmental regulations
  • Support Safety Integrity Level ASIL A
  • AEC-Q100 Grade 0 Qualified
Discover all features

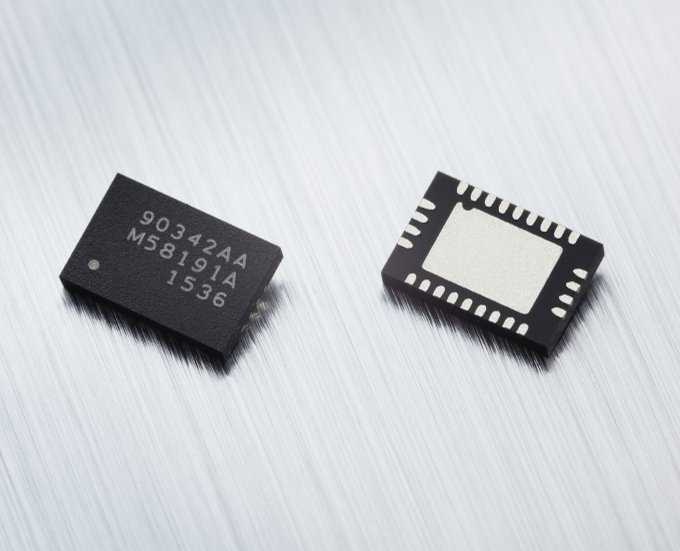

Automotive quad thermocouple interface IC - MLX90342

Product description

The MLX90342 is an innovative, high-performance quadruple thermocouple interface that provides rapid response and very high levels of accuracy when measuring extreme temperatures. It has been specifically designed to allow automotive designers to address the need for more stringent engine and exhaust thermal management and control.

Target applications include turbo charger temperature control, exhaust gas recirculation (EGR), selective catalytic reduction (SCR), diesel oxidation catalyst (DOC) and diesel/gasoline particle filtering systems.

The MLX90342 supports a -40°C to 1,300°C thermocouple temperature range and has an operating temperature specification spanning -40°C to 155°C. Sophisticated on-board cold junction compensation and linearization plus factory calibration, can attains the high accuracy of ±2.5°C for Ta>0degC. This effectively means the sensor is twice as accurate as other currently available devices.

The sensor interface is housed in a miniature, 26-pin 6x4 mm QFN package and has a rapid refresh rate up to 100Hz that aligns with manufacturer expectations for high-speed response.

Features and benefits

  • RoHS compliant QFN 4x6 26 pins package for even smaller PCB area

  • -40°C to 1,300°C measurement temperature range

  • Operating temperature specification spanning -40 to 155°C

  • Can attains the high accuracy of ±2.5°C for Ta>0degC

  • High update rate up to 100Hz

  • Thermocouple linearization with on board cold junction compensation

  • SENT standard according to SAE-J2716 Jan 2010 plus Fast Channel Multiplexing

  • Extensive sensor diagnostic capabilities

  • Enables the exhaust treatment system to conform to the latest environmental regulations
  • Support Safety Integrity Level ASIL A
  • AEC-Q100 Grade 0 Qualified

Practical applications

ICE gasoline base engine

Base engines power the car. It is therefore important to ensure full efficiency of the combustion process.

Read more

ICE gasoline after treatment

We always need to save energy by all means, so ICE after treatment optimization is of no question. Efficiency and emission reduction are essential results of ICE after treatment.

Read more
