Development kit for the smart MLX91231
DVK91231 Melexis
The DVK91231 provides a mother board and a sensor board to enable comprehensive performance evaluation of the MLX91231’s capabilities. Note that a Melexis Universal Master MUM (not included) is also required.
Top features
-
Simplify the evaluation of the MLX91231
-
Low level software libraries available
-
GUI (Graphical User Interface) starter toolbox for calibration and measurement
-
Hardware reference design available
-
Melexis IDE (Integrated Design Environment)
-
For embedded software
-
Firmware example available (calibration and application)
-
Development kit for the smart MLX91231 - DVK91231
Product description
The DVK91231 provides a mother board and a sensor board to enable comprehensive performance evaluation of the MLX91231’s capabilities. Note that a Melexis Universal Master MUM (not included) is also required.

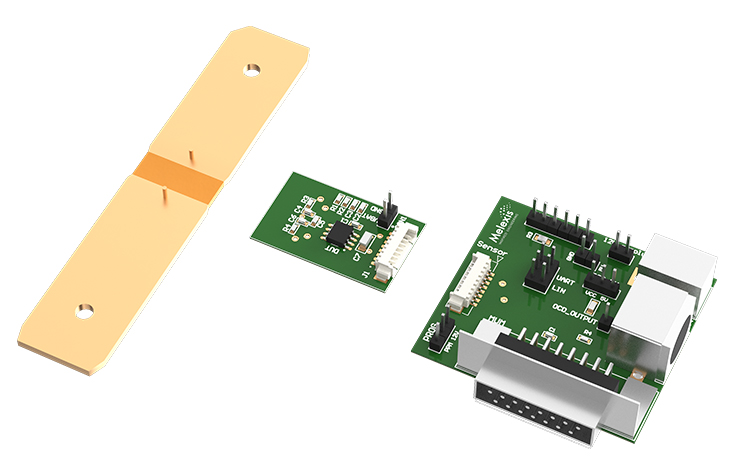

The DVK91231 includes:
- Mother board: junction between the MUM Programmer (not included in the DVK) and the sensor board
- Sensor board: ready to use with a MLX91231 already soldered
- Connectors: between mother board and MUM programmer, between mother board and sensor board
- Shunt bar
- Spare MLX91231 ICs (x2)
The DVK91231 does not include:
- Melexis Universal Master (MUM): programmer tool and LIN master
Features and benefits
-
Simplify the evaluation of the MLX91231
-
Low level software libraries available
-
GUI (Graphical User Interface) starter toolbox for calibration and measurement
-
Hardware reference design available
-
Melexis IDE (Integrated Design Environment)
-
For embedded software
-
Firmware example available (calibration and application)
-
