Development Kit for Melexis IMC-Hall® current sensors

DVKIMCHallShield

The DeVelopment Kit (DVK) DVK-IMC-Hall-Shield provides all you need to evaluate the performances and the functionalities of MLX91208, MLX91216 and MLX91218 IMC-Hall® current sensor ICs.

Read more

Top features

  • Plug and play DVK (all included from copper bar to sensor)

  • DVK provided with an extra PCB to connect any other variant

  • Build and test different configurations (shields, sensors, sensitivity)

  • Ground Layer and Decoupling capacitors for high EMC performances

  • (Programmable) high speed current sensor

  • (Programmable) linear transfer characteristic

  • Measurement range

    • Smallest shield: up to 700 A

    • Biggest shield: up to 1400 A

  • SOIC8 package RoHS compliant

  • Wideband from DC to 400kHz

  • Short response time

Discover all features
Development Kit for Melexis IMC-Hall® current sensors - DVKIMCHallShield

Product description

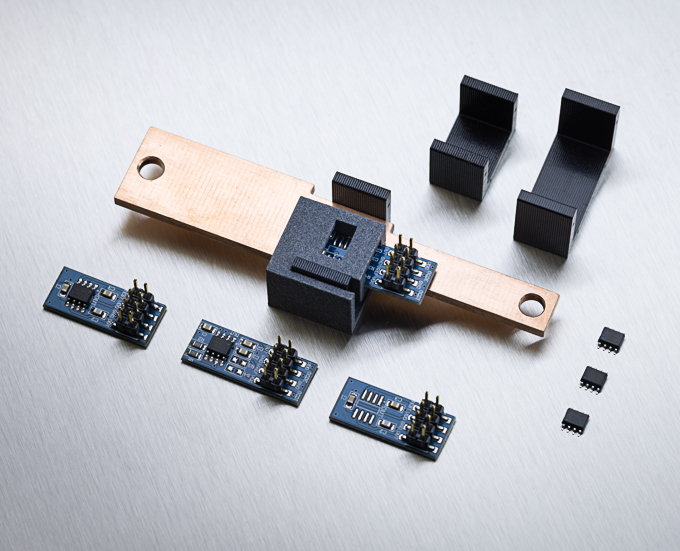

The DeVelopment Kit (DVK) DVK-IMC-Hall-Shield provides all you need to evaluate the performances and the functionalities of the MLX91208, MLX91216 and MLX91218 IMC-Hall® current sensor ICs. It includes:

  • Ready-to-use evaluation board provided with the MLX91216LDC-CAV-001-RE and MLX91218LDC-ARX-300-RE for a quick start
  • A MLX91208/MLX91216 evaluation board with no IC to be customized with the reference you need
  • A MLX91218 evaluation board with no IC to be customized with the reference you need
  • Additionals spare sensors
  • SiFe ferromagnetic shields
  • Copper bars
  • Plastic holders in order to easily assemble all the possible configurations

Development Kit for Melexis IMC-Hall® current sensors

Features and benefits

  • Plug and play DVK (all included from copper bar to sensor)

  • DVK provided with an extra PCB to connect any other variant

  • Build and test different configurations (shields, sensors, sensitivity)

  • Ground Layer and Decoupling capacitors for high EMC performances

  • (Programmable) high speed current sensor

  • (Programmable) linear transfer characteristic

  • Measurement range

    • Smallest shield: up to 700 A

    • Biggest shield: up to 1400 A

  • SOIC8 package RoHS compliant

  • Wideband from DC to 400kHz

  • Short response time

Related tech talks

IMC-Hall® current sensing

IMC-Hall® current sensing

We explain here the basis of the IMC-Hall technology and the benefits it brings to current sensing. Discover the concept of the IMC, the handling of stray fields and how to optimize the module.
Read more
