Evaluation board for MLX90372
EVB90372 Melexis
The EVB90372 provides an easy way to connect the MLX90372 Triaxis® magnetic sensor to a microcontroller or measurement device.
Top features
-
Single die, SOIC-8 package or dual die, TSSOP-16 package
-
Wide magnetic field range: 10-70mT (-300) or 10mT/mm (-100, -200)
-
Pre-programmed for on-axis rotary or linear motion sensing with a 2 (-200, -300) or 4 (-100) pole magnet
-
0x0001 to 0x4080 LSb SENT output over 180 or 360 degrees of rotation or +/-15mm linear motion
- Magnet not included (see magnet suppliers for magnetic position sensors)
Evaluation board for MLX90372 - EVB90372
Product description

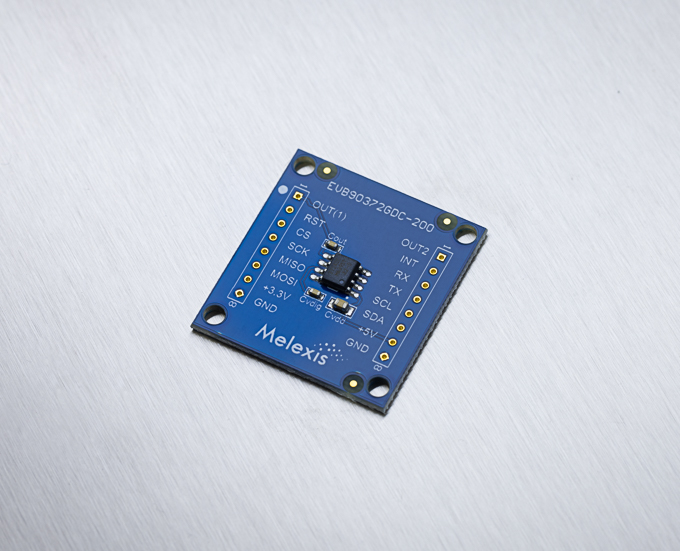

The EVB90372 contains a single MLX90372 IC mounted in the middle of a 30.5mm x 32.4mm PCB. The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90372 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via a digital SENT signal.
Important: the products used on the EVB's are pre-programmed and memory locked at the factory. Therefore they cannot be reprogrammed. If it is desired to reprogram the IC's with the PTC-04 programmer then the pre-programmed part must be swapped with a blank (default) IC.
| Order code | Product | Description |
| EVB90372-GDC-ACC-100 | MLX90372 GDC-ACC-100 | Pre-programmed MLX90372 IC in single-die SOIC-8 package for rotary end-of-shaft motion. Range 0-180 degrees, 0x0001-0x4088 SENT output. Requires 4-pole magnet. |
| EVB90372-GDC-ACC-200 | MLX90372 GDC-ACC-200 | Pre-programmed MLX90372 IC in single-die SOIC-8 package for linear motion. Range +/-15mm typ, 0x0001-0x4088 SENT output. |
| EVB90372-GDC-ACC-300 | MLX90372 GDC-ACC-300 | Pre-programmed MLX90372 IC in single-die SOIC-8 package for rotary end-of-shaft motion. Range 0-360 degrees, 0x0001-0x4088 SENT output. Requires 2-pole magnet. |
| EVB90372-GGO-ACC-100 | MLX90372 GGO-ACC-100 | Pre-programmed MLX90372 IC in dual-die TSSOP-16 package for rotary end-of-shaft motion. Range 0-180 degrees, 0x0001-0x4088 SENT output. Requires 4-pole magnet. |
| EVB90372-GGO-ACC-200 | MLX90372 GGO-ACC-200 | Pre-programmed MLX90372 IC in dual-die TSSOP-16 package for linear motion. Range +/-15mm typ, 0x0001-0x4088 SENT output. |
| EVB90372-GGO-ACC-300 | MLX90372 GGO-ACC-300 | Pre-programmed MLX90372 IC in dual-die TSSOP-16 package for rotary end-of-shaft motion. Range 0-360 degrees, 0x0001-0x4088 SENT output. Requires 2-pole magnet. |
| Magnet not included |

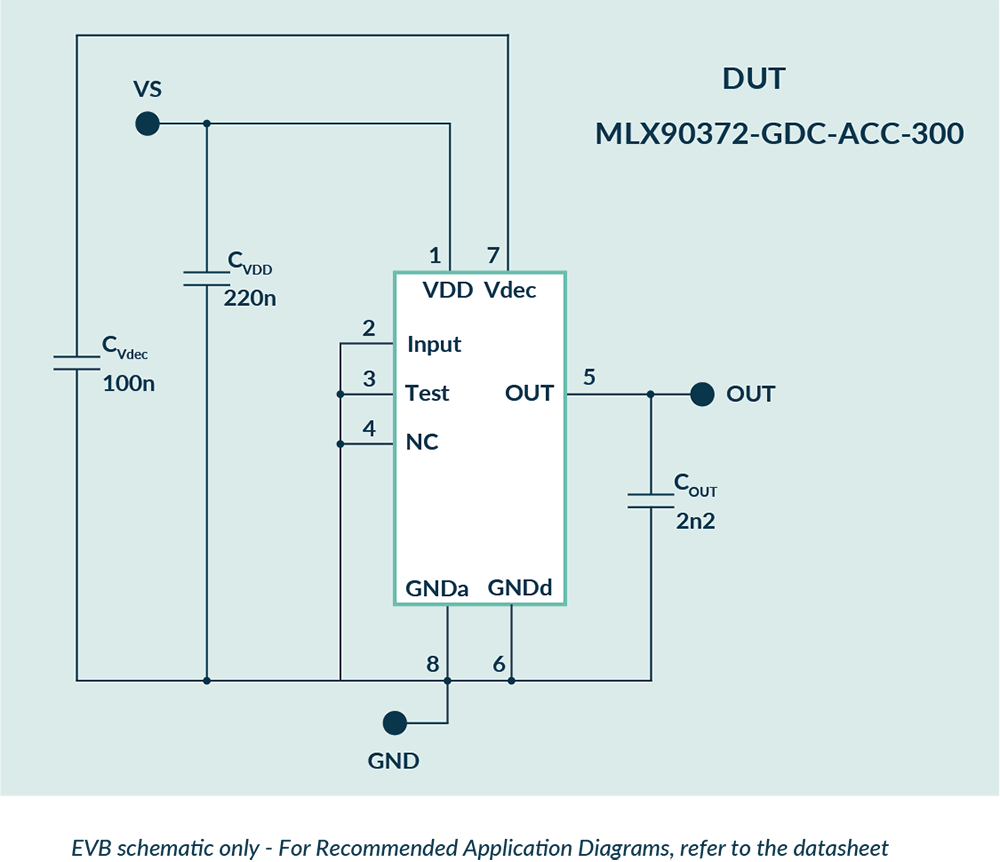

Single die:

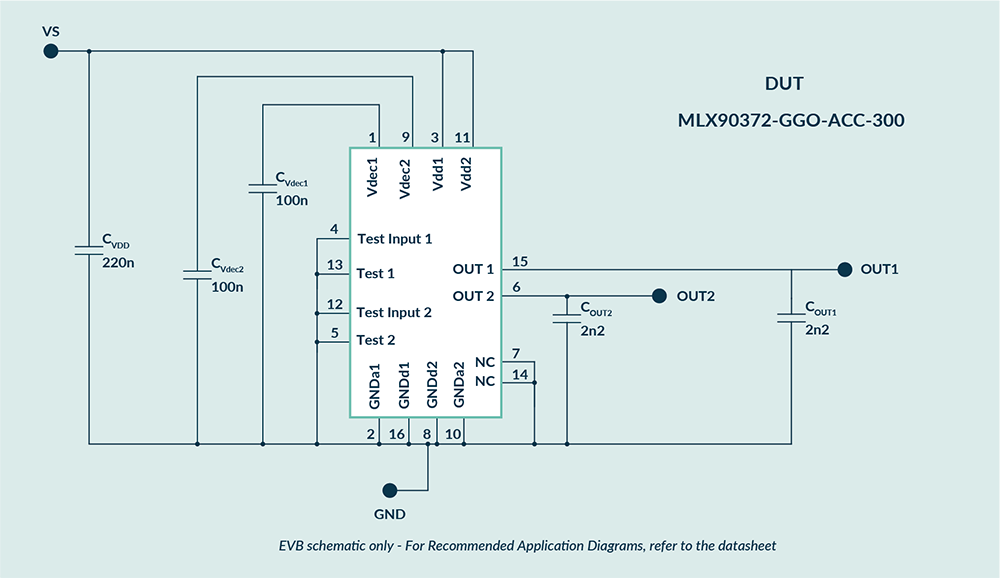

Dual die:
Features and benefits
-
Single die, SOIC-8 package or dual die, TSSOP-16 package
-
Wide magnetic field range: 10-70mT (-300) or 10mT/mm (-100, -200)
-
Pre-programmed for on-axis rotary or linear motion sensing with a 2 (-200, -300) or 4 (-100) pole magnet
-
0x0001 to 0x4080 LSb SENT output over 180 or 360 degrees of rotation or +/-15mm linear motion
- Magnet not included (see magnet suppliers for magnetic position sensors)
