Evaluation board for MLX90425
EVB90425 Melexis
The EVB90425 provides an easy way to connect the MLX90425 Triaxis® magnetic sensor to a microcontroller or measurement device.
Top features
-
SFI - Stray Field Immunity
-
Pre-programmed for end-of-shaft motion sensing with a diametric magnet
-
10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation
-
MLX90425 Single-die SOIC-8 package
Evaluation board for MLX90425 - EVB90425
Product description

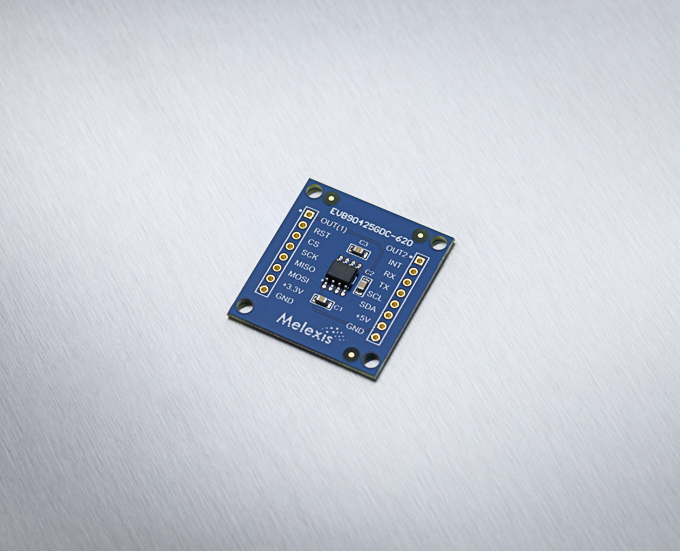

The EVB90425 contains a single MLX90425 IC mounted in the middle of a 25mm x 35mm PCB.
The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90425 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via an analog output signal.
Note: the product used on the EVB is pre-programmed and not memory locked. Therefore, if needed, it can be reprogrammed with the PTC-04 programmer .
| Order code | Product | Description |
| EVB90425GDC-620-Rev1 | MLX90425GDC-ABA-620 | Pre-programmed MLX90425 IC in single-die SOIC-8 package for rotary end-of-shaft motion. Range 0-360 degrees, 10-90% Vdd analog output. Requires 2-pole magnet. SFI. |
| Magnet not included |
Features and benefits
-
SFI - Stray Field Immunity
-
Pre-programmed for end-of-shaft motion sensing with a diametric magnet
-
10-90% Vdd out (0.5-4.5V) over 360 degrees of rotation
-
MLX90425 Single-die SOIC-8 package
