The EVK75026 is the evaluation kit for the MLX75026 QVGA time-of-flight (ToF) sensor.

Read more

Top features

  • MLX75026 QVGA time-of-flight sensor

  • VCSEL illumination (110° FOV at 940 nm)

  • Modulation frequencies in range 4 to 100 MHz

  • Exchangeable sensor optics (standard S mount)

  • Distance & confidence data at max. 35 FPS

  • Raw data mode(s)

  • Visualizer, C API & Matlab SDK

Discover all features
Gen 3 QVGA time-of-flight sensor evaluation kit - EVK75026

Product description

The EVK75026 is the evaluation platform for the MLX75026 QVGA time-of-flight (ToF) sensor. This MLX75026 enables real-time 3D imaging at QVGA resolution with unsurpassed accuracy & sunlight robustness. The evaluation kit is a complete camera that can be connected directly to a PC for real-time visualization, recording, and analysis of distance data, whilst allowing easy access to many configuration settings.

This modular plug-and-play platform is perfectly set up for customization by its customers. The kit consists of four stacked PCBs (from top to bottom: illumination board, TOF sensor board, interface board, and a processor board). A graphical user interface for Windows is provided for live depth map visualization, basic recording, analysis, and configuration. For custom SW development, a MATLAB SDK and C API is provided. The built-in flexibility of our evaluation kit enables any designer to develop the necessary system know-how and product experience for use in their application.

The evaluation kit is available with 110° horizontal field-of-view and 940 nm automotive-qualified VCSEL illumination, designed in collaboration with Lumentum (VCSEL supplier) and Lextar (package house).

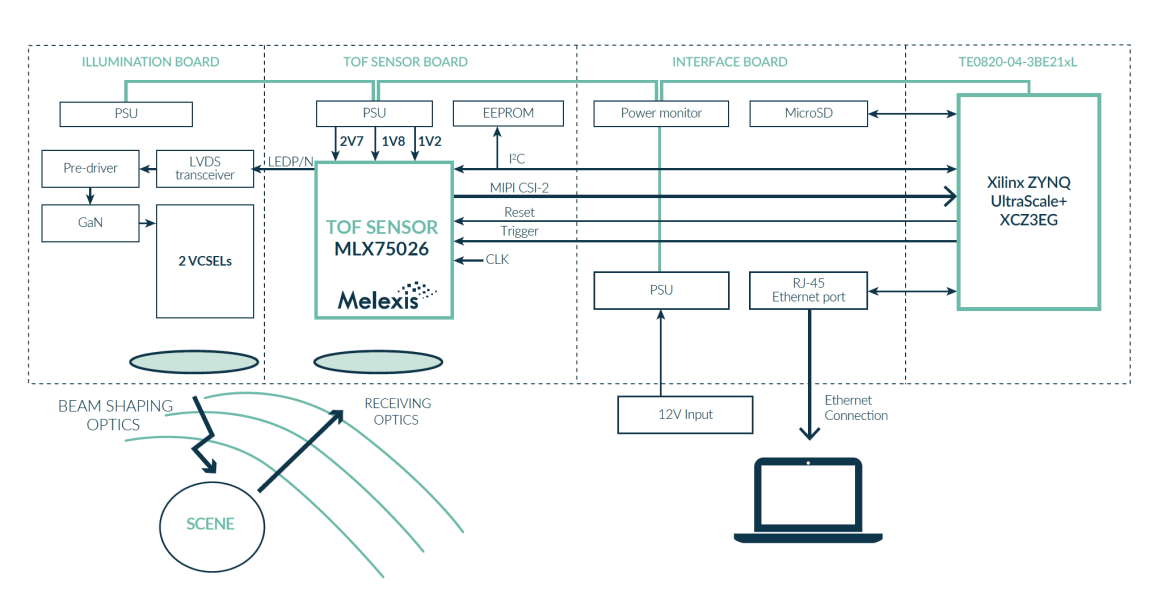

EVK75026- block diagram

Features and benefits

  • MLX75026 QVGA time-of-flight sensor

  • VCSEL illumination (110° FOV at 940 nm)

  • Modulation frequencies in range 4 to 100 MHz

  • Exchangeable sensor optics (standard S mount)

  • Distance & confidence data at max. 35 FPS

  • Raw data mode(s)

  • Visualizer, C API & Matlab SDK
