2-Wire ASIL B switch

MLX92342-MLX92341
Select an item
  • 2-Wire ASIL B switch
  • 2-Wire ASIL B switch
  • 2-Wire ASIL B switch

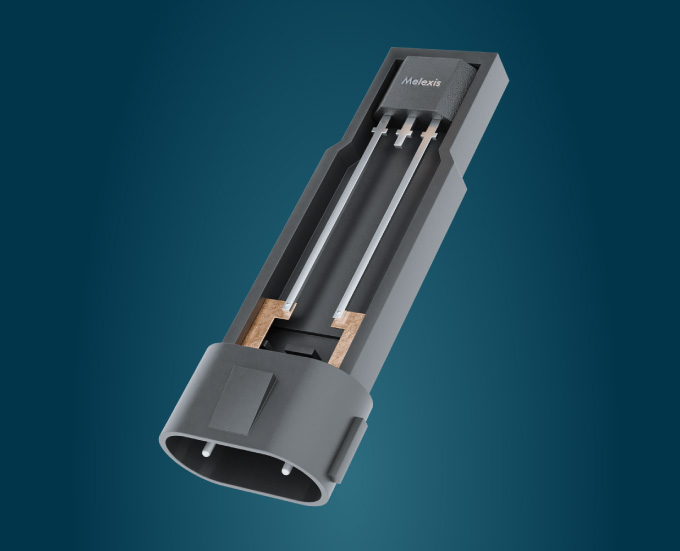

The MLX92342 is a highly flexible ASIL B, PCB-less sensor IC featuring robust ESD protection and a fast safety-signal response under 100 µs, making it ideal for new zonal architecture.

Read more

Top features

  • ISO 26262 ASIL B SEooC
  • ESD level (8 kV HBM, 25 kV system-level)
  • Wide magnetic range from 0.5 mT to 200 mT (40 mT for IMC variant)
  • Programmable magnetic Latch, Unipolar Switch or Omnipolar Switch functions
  • Temperature compensation coefficient in the range -2000 to 0 ppm/°C
  • Optional IMC integration for lateral magnetic sensing (X or Y)
  • Operating voltage range from 2.7 V to 28 V (32 V AMR, Absolute Maximum Rating)
  • Operating temperature from -40 °C to +150 °C

  • Certifications

    • ISO 26262 ASIL B SEooC

    • AEC-Q100

    • ESD level (8 kV HBM, 25 kV system-level)

  • Packages, RoHS compliant

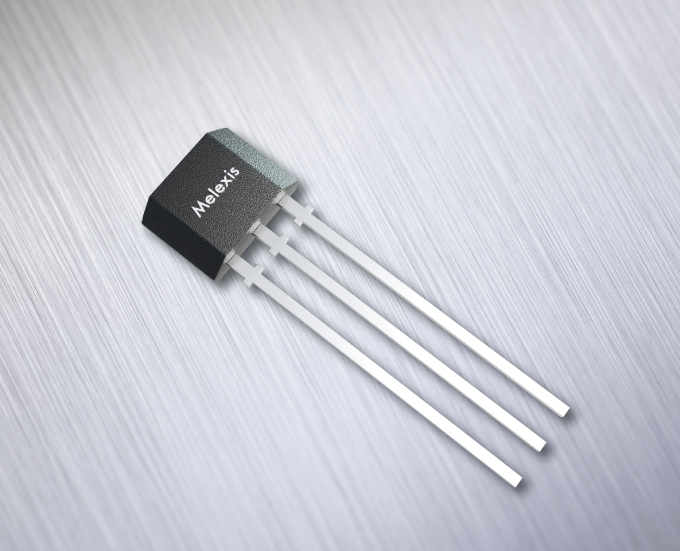

    • UA (Through hole)

    • UA with integrated capacitor (PCB-less)

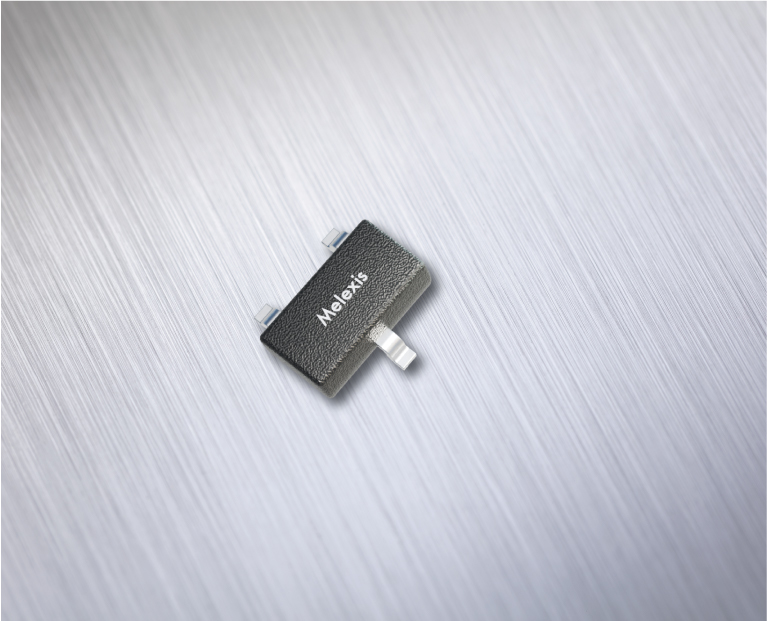

    • TSOT23 (Surface mount)

  • Integrated protections

    • Reverse supply voltage protection

    • Thermal protection

    • Under-voltage reset

Discover all features
2-Wire ASIL B switch  -  MLX92342-MLX92341

Product description

The MLX92342/1 is a monolithic sensor IC sensitive to perpendicular or lateral magnetic field (version dependent). The output state of the device is changing the supply current. The two-wire interface not only saves one wire, but also allows implementation of diagnostic functions as reverse polarity connection and malfunction detection.

The MLX92342 can be programmed to act as magnetic latch, unipolar switch or omnipolar switch. The switching thresholds and TC coefficient can be also programmed.

The MLX92342/1 has comprehensive on-chip diagnostic mechanisms, compliant with ASIL-B level. All diagnostic functions are leading to one and the same Safe state, reported with a dedicated Safe current. The user can select between Parallel or Sequential diagnostic modes, respectively selecting between fast magnetic update or fast diagnostic response.

Customers can benefit from the end-of-line (EoL) programming capability of the MLX92342 to trim mechanical tolerances away or alternatively choose a pre-programmed MLX92341 switch device. Programming is available with the PTC-04 or Latch&Switch EVB2 through the VDD pin.

Typical Applications:

  • Automotive: Seatbelt buckle detection, window lifters, brake fluid level sensors, active air skirts, locks (doors, charge ports), valves, and actuators.
  • Industrial & Mobility: Remote position sensing, motorcycles, and motor commutation.

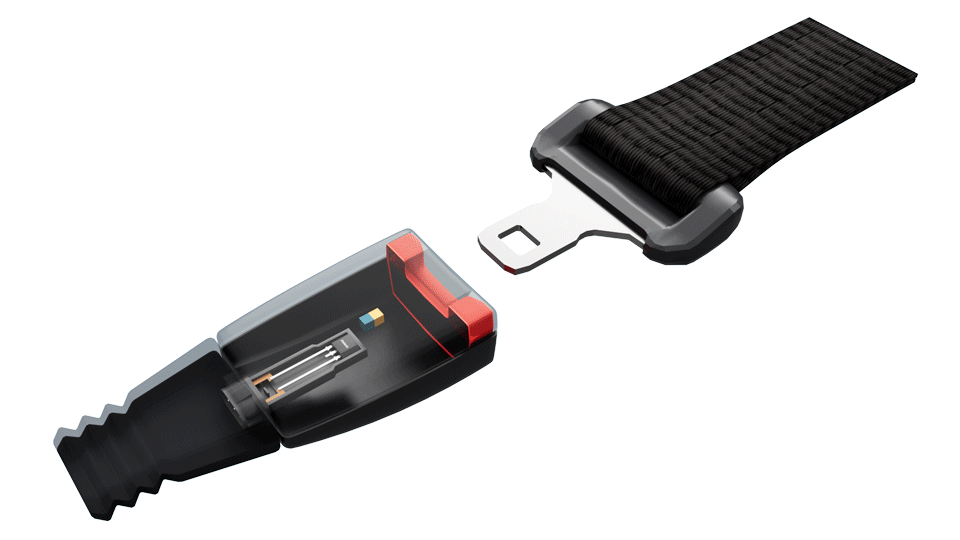

MLX92342 - Seatbelt

Features and benefits

  • ISO 26262 ASIL B SEooC
  • ESD level (8 kV HBM, 25 kV system-level)
  • Wide magnetic range from 0.5 mT to 200 mT (40 mT for IMC variant)
  • Programmable magnetic Latch, Unipolar Switch or Omnipolar Switch functions
  • Temperature compensation coefficient in the range -2000 to 0 ppm/°C
  • Optional IMC integration for lateral magnetic sensing (X or Y)
  • Operating voltage range from 2.7 V to 28 V (32 V AMR, Absolute Maximum Rating)
  • Operating temperature from -40 °C to +150 °C

  • Certifications

    • ISO 26262 ASIL B SEooC

    • AEC-Q100

    • ESD level (8 kV HBM, 25 kV system-level)

  • Packages, RoHS compliant

    • UA (Through hole)

    • UA with integrated capacitor (PCB-less)

    • TSOT23 (Surface mount)

  • Integrated protections

    • Reverse supply voltage protection

    • Thermal protection

    • Under-voltage reset
