Development kit for the smart MLX91231
DVK91231-rev2
The DVK91231 rev2 provides a sensor board including an NTC and all the necessary components to enable the evaluation of the MLX91231’s capabilities. Note that an external programmer(PPM) is also required.
Top features
-
Simplify the evaluation of the MLX91231
-
Melexis IDE (Integrated Design Environment)
-
For embedded software
-
Firmware example available (calibration and application)
-
-
Low level software libraries available
-
GUI (Graphical User Interface) starter toolbox for calibration and measurement
-
Hardware reference design available
Development kit for the smart MLX91231 - DVK91231-rev2
Product description
The DVK91231 rev2 provides a sensor board including an NTC and all the necessary components to enable the evaluation of the MLX91231’s capabilities. Note that an external programmer(PPM) is also required.

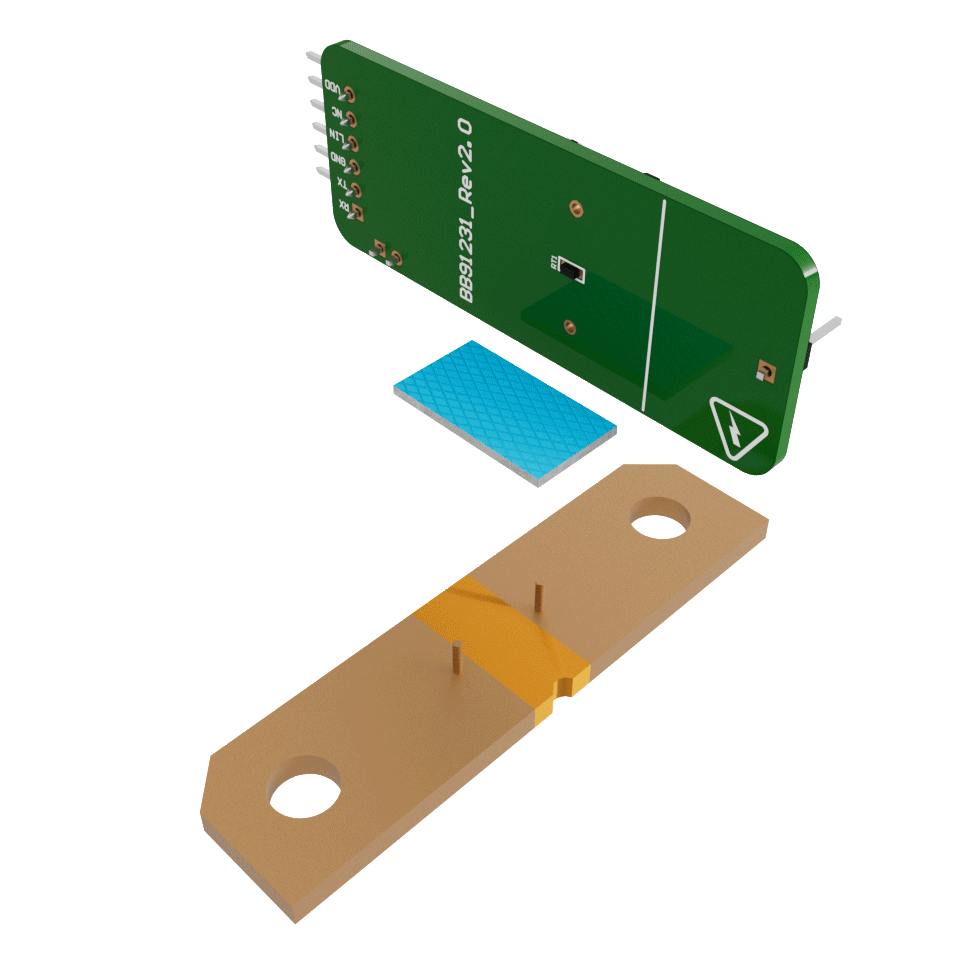

The DVK91231 rev2.0 includes:
- BB91231 rev2.0 (which comprises an MLX91231 and an NTC)
- Shunt
- Thermal conductive pad
- 4-pin jumper wire
Note that the DVK91231 does not include any external programmer (PPM), which is required.
The necessary documents can be accessed through the MyMelexis platform: www.melexis.com/mymelexis. To gain access, please contact your local sales representative.
Features and benefits
-
Simplify the evaluation of the MLX91231
-
Melexis IDE (Integrated Design Environment)
-
For embedded software
-
Firmware example available (calibration and application)
-
-
Low level software libraries available
-
GUI (Graphical User Interface) starter toolbox for calibration and measurement
-
Hardware reference design available
