Evaluation board for MLX90380
EVB90380 Melexis
The EVB90380 provides an easy way to connect the MLX90380 Triaxis® resolver IC to a microcontroller or measurement device.
Top features
-
Single die, SOIC-8 package
-
Analog sine cosine output
-
High speed, capable of measuring from 0-20k RPM
-
Pre-programmed for on-axis (EOS) or off-axis (TS) rotary motion sensing with a diametric magnet
- Magnet not included (see magnet suppliers for magnetic position sensors)
Evaluation board for MLX90380 - EVB90380
Product description

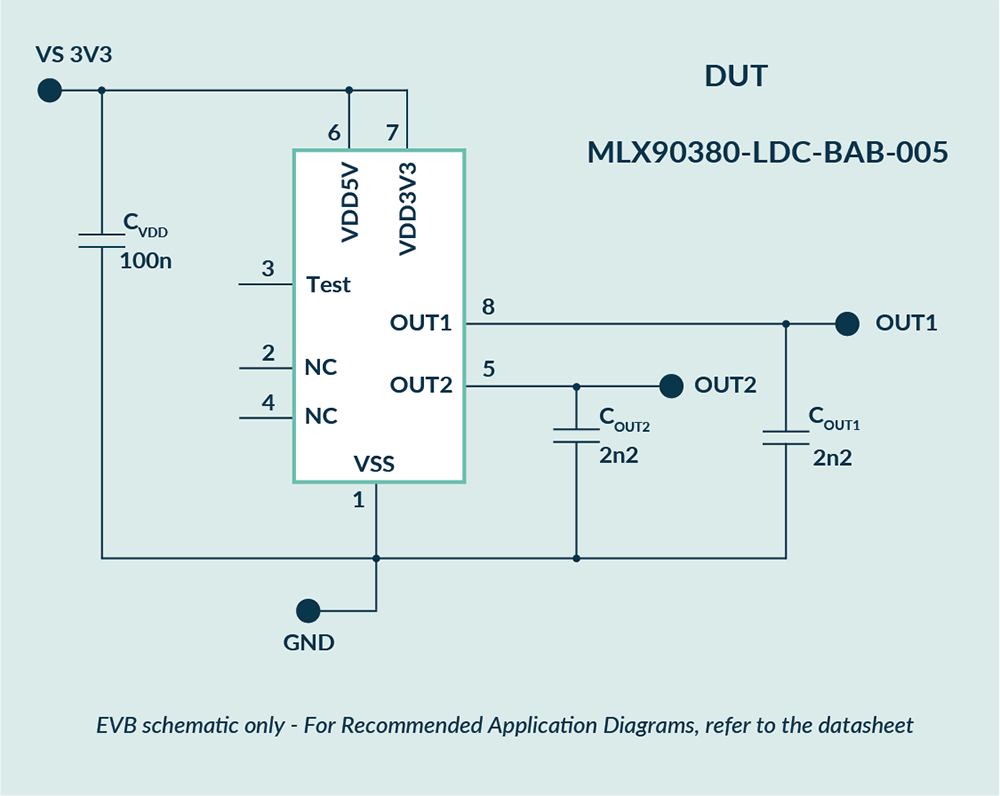

The EVB90380 contains a single MLX90380 IC mounted in the middle of a 25mm x 35mm PCB. The board includes mounting holes for installation into a system and a series of holes on a standard 2.54mm (0.100”) pitch allowing for connection to the MLX90380 via flying leads or a pin header. The necessary passive components are included to allow for interfacing via two analog output signals; sine and cosine.
Development kit:
The development kit for magnetic sensors (or interface board) provides an easy way to connect the Melexis evaluation boards to various magnetic pieces like a knob. Additionally, the interface provides pin-outs to add an external LCD and Arduino or Mbed development board.
| Order code | Product | Description |
| EVB90380_EOS | MLX90380 LDC-BAB-005 | Pre-programmed MLX90380 in single-die SOIC-8 package. For on-axis rotary position sensing. |
| EVB90380_EOS_h | MLX90380 LDC-BAB-005 | Version with pin headers (compatible with the DVKmagnetic). Pre-programmed MLX90380 in single-die SOIC-8 package. For on-axis rotary position sensing. |
| EVB90380_TS | MLX90380 LDC-BAB-045 | Pre-programmed MLX90380 in single-die SOIC-8 package. For off-axis or through-shaft rotary position sensing. |
| EVB90380_TS_h | MLX90380 LDC-BAB-045 | Version with pin headers (compatible with the DVKmagnetic). Pre-programmed MLX90380 in single-die SOIC-8 package. For off-axis or through-shaft rotary position sensing. |
| Magnet not included |
Features and benefits
-
Single die, SOIC-8 package
-
Analog sine cosine output
-
High speed, capable of measuring from 0-20k RPM
-
Pre-programmed for on-axis (EOS) or off-axis (TS) rotary motion sensing with a diametric magnet
- Magnet not included (see magnet suppliers for magnetic position sensors)
