LIN slave for IO extension and interior lighting applications

MLX81109

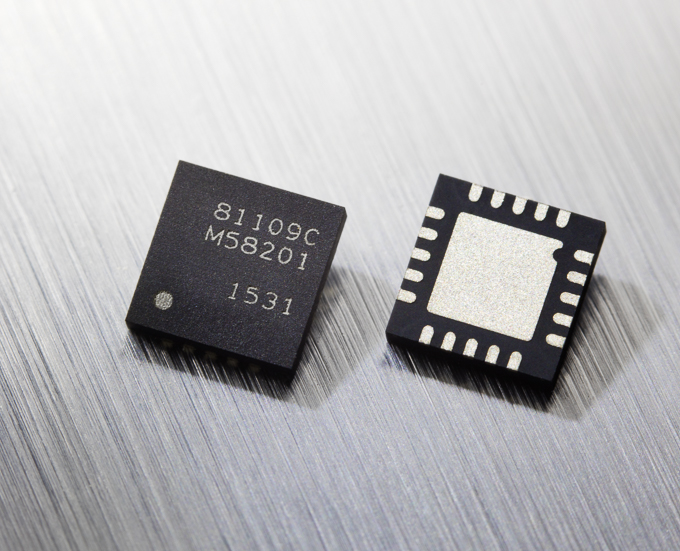

The MLX81109 LIN slave provides a single chip solution for different IO extension applications.

All necessary components like physical layer LIN transceiver, LIN controller, voltage regulator, and 16-bit RISC-based microcontroller, as well as supporting functions like ADC, 16-bit PWM, constant current high voltage capable IOs are integrated into the chip.

It also includes the possibility for LIN auto-configuration and can thus be used for other applications requiring a low pin count fully integrated LIN slave. The LIN protocol handler meets all LIN standards including LIN2.x, as well as SAE J2602.

To support a high thermal performance by keeping the low cost target, our MLX81109 is offered in a QFN 5x5 package.

Read More

Top Features

  • 16-bit RISC MCU with 32kB Flash memory, RAM, EEPROM with ECC

  • Internal RC-Oscillator

  • Co-processor for MUL and DIV operations

  • LIN Protocol Controller according to LIN 2.x and SAE J2602

  • Low interrupt load to the application

  • LIN Transceiver according to LIN 2.x and SAE J2602

  • Support for Autoconfig according bus shunt

  • Support of MiLoc autoconfig system

  • 4 programmable constant current (35mA)/high voltage capable IOs

  • 8 low voltage (5V) capable IOs

  • 16-bit current modulation outputs

  • Interrupt capable inputs

  • 10-bit ADC with integrated pre-divider connected to all IOs

  • Internal Battery and reference voltage monitor

  • LED colour compensation as well as aging compensation

  • Automotive temperature range of -40°C to 125°C

  • QFN5x5 package
Discover all features
LIN slave for IO extension and interior lighting applications - MLX81109

Features and benefits

  • 16-bit RISC MCU with 32kB Flash memory, RAM, EEPROM with ECC

  • Internal RC-Oscillator

  • Co-processor for MUL and DIV operations

  • LIN Protocol Controller according to LIN 2.x and SAE J2602

  • Low interrupt load to the application

  • LIN Transceiver according to LIN 2.x and SAE J2602

  • Support for Autoconfig according bus shunt

  • Support of MiLoc autoconfig system

  • 4 programmable constant current (35mA)/high voltage capable IOs

  • 8 low voltage (5V) capable IOs

  • 16-bit current modulation outputs

  • Interrupt capable inputs

  • 10-bit ADC with integrated pre-divider connected to all IOs

  • Internal Battery and reference voltage monitor

  • LED colour compensation as well as aging compensation

  • Automotive temperature range of -40°C to 125°C

  • QFN5x5 package
