EVK75123 Alternative with robust housing and simple USB interface

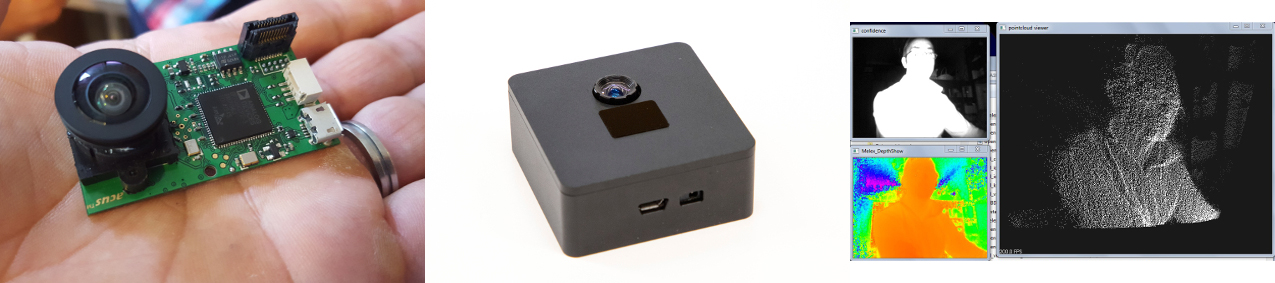

The A100 is a demo kit for the MLX75023 and MLX75123 Time-of-Flight (ToF) products.

This demo kit is a complete ToF camera and can be directly connected to a PC for visualization and recording of depth map data while allowing direct access to basic parameters. It has a compact and robust housing (54x55x23 mm) and supports distance up to four meters with an accuracy of 1%.

The module is integrated with the smart embedded data processing algorithm. Depth image, grayscale image and point cloud picture can be output through the micro USB 2.0 interface.

The evaluation kit is available with 70° field-of-view (FOV) with 850 nm VCSEL illumination and the software development kit (SDK) is available for Windows/Linux.

Features

  • Based on generation 1 QVGA Time-of-Flight chipset
  • QVGA resolution
  • 60 klux sunlight rejection
  • 70° field-of-view (FOV)
  • Up to four meters distance

Contact

The A100 demo kit is distributed by ACUS Technologies.

Contact: Hans He (hans@acus-tech.com)
Website: www.acus-tech.com
