The MLX92214 is a 3-wire latch designed for DC/BLDC motors, specially adapted to power tools, PCs, servers and home appliance applications.

Read more

Top features

  • Cost-sensitive solution for motor control

  • Hall elements replacement

  • Low power latch 2.1 mA

  • Supports 3.3 V and 5 V (compatible with all standard microcontrollers)

  • ESD capability 6 kV

Discover all features
MLX92214 - 3-wire general-purpose latch - MLX92214

Product description

The MLX92214 is a Hall-effect latch bringing a robust but cost-sensitive solution for DC/BLDC motor control, specially adapted for power tools, PCs, servers and home appliance applications:

The MLX92214 is the best fit for Hall replacement, saving space by simplifying the overall design and reducing the number of external components on the PCB.

The MLX92214 comes pre-programmed, which, in addition to its design for a standalone PCB, will minimize the effort of the integration in the module.

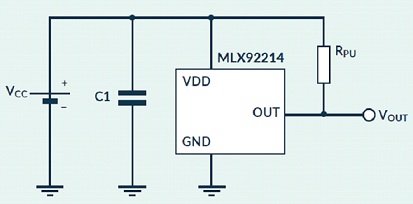

MLX92214 Application diagram
Application diagram example

Features and benefits

  • Cost-sensitive solution for motor control

  • Hall elements replacement

  • Low power latch 2.1 mA

  • Supports 3.3 V and 5 V (compatible with all standard microcontrollers)

  • ESD capability 6 kV

Videos

Magnetic Latch Switch: Experience matters

Product

25+ years in Latch & Switch has given Melexis a unique view of market needs. Decisions taken in 1993 to focus on CMOS technology and TSOT packaging are just as valid today as they were then.

Step-by-step guide to Latch & Switch portfolio

How to

During this video, Thomas Strauven, Applications Engineer for Latch & Switch, guides you through the Melexis selection guide for the Latch & Switch portfolio. This selection guide is a parametric document that allows you to find and compare the specifications and features of our extensive Latch & Switch portfolio.

Lateral sensing with integrated IMC for DC/BLDC motor applications

Application

As brushless DC (BLDC) motors become an increasingly popular choice for many applications including blowers, cooling fans and pumps, more sophisticated control is required. By integrating an IMC into products, such as the MLX92211 IC, surface mount sensing is available, thereby simplifying the production process and reducing the space required.

Inspired Engineering
