Bipolar Hall-effect switch - Low voltage and very high sensitivity

US4881

The US4881 is a bipolar Hall-effect switch designed in mixed signal CMOS technology that integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.

Read more

Top features

  • Operating voltage range from 2.2 V to 18 V

  • Very high magnetic sensitivity

  • CMOS technology

  • Chopper-stabilized amplifier stage

  • Low current consumption

  • Open drain output

  • Thin SOT23 3L and flat TO-92 3L both RoHS compliant packages

  • SE package north pole active

  • UA package south pole active
Discover all features
Bipolar Hall-effect switch - Low voltage and very high sensitivity - US4881

Product description

The US4881 is a bipolar Hall-effect switch designed in mixed signal CMOS technology.

The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.

The low operating voltage and extended choice of temperature range make it suitable for use in automotive, industrial and consumer low voltage applications.

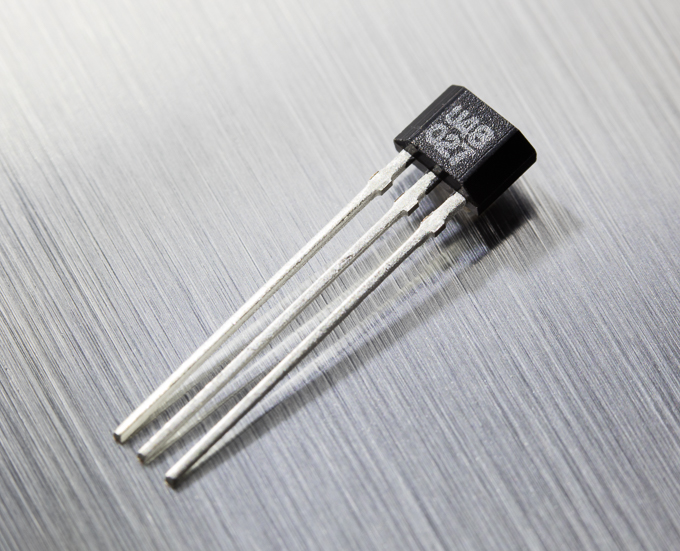

The device is delivered in a TSOT for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount. Both 3-lead packages are RoHS compliant.

Features and benefits

  • Operating voltage range from 2.2 V to 18 V

  • Very high magnetic sensitivity

  • CMOS technology

  • Chopper-stabilized amplifier stage

  • Low current consumption

  • Open drain output

  • Thin SOT23 3L and flat TO-92 3L both RoHS compliant packages

  • SE package north pole active

  • UA package south pole active
