The US5781 is a unipolar Hall-effect switch designed in mixed signal CMOS technology that integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.

Read more

Top features

  • Wide operating voltage range from 3.5 V to 24 V

  • Medium sensitivity

  • CMOS technology

  • Chopper-stabilized amplifier stage

  • Low current consumption

  • Open drain output

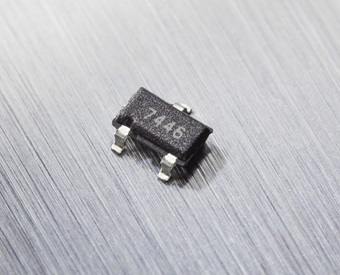

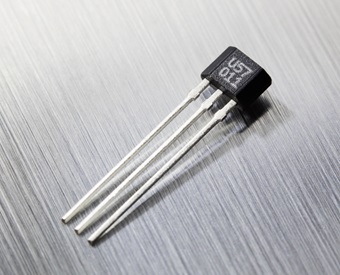

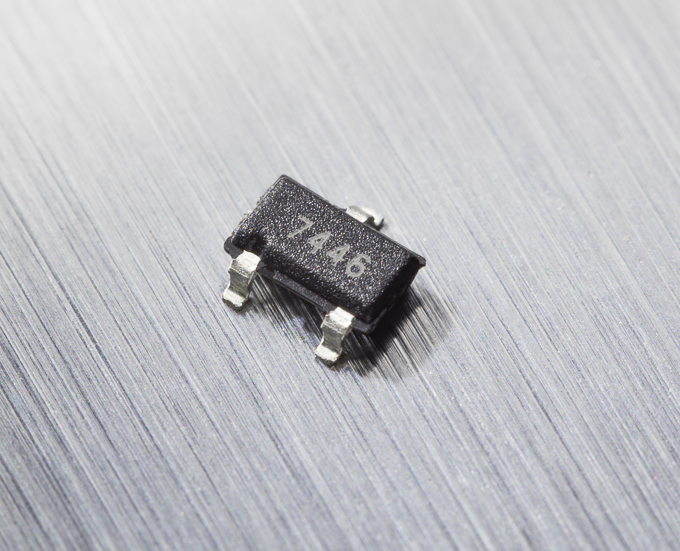

  • Thin SOT23 3L and flat TO-92 3L both RoHS compliant packages

  • SE package North pole active

  • UA package South pole active
Discover all features
Unipolar Hall-effect switch - Medium sensitivity - US5781

Product description

The US5781 is a unipolar Hall-effect switch designed in mixed signal CMOS technology.

The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.

Thanks to its wide operating voltage range and extended choice of temperature range, it is suitable for use in automotive and solid state switch applications.

The device is delivered in a TSOT for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount. Both 3-lead packages are RoHS compliant.

Features and benefits

  • Wide operating voltage range from 3.5 V to 24 V

  • Medium sensitivity

  • CMOS technology

  • Chopper-stabilized amplifier stage

  • Low current consumption

  • Open drain output

  • Thin SOT23 3L and flat TO-92 3L both RoHS compliant packages

  • SE package North pole active

  • UA package South pole active
